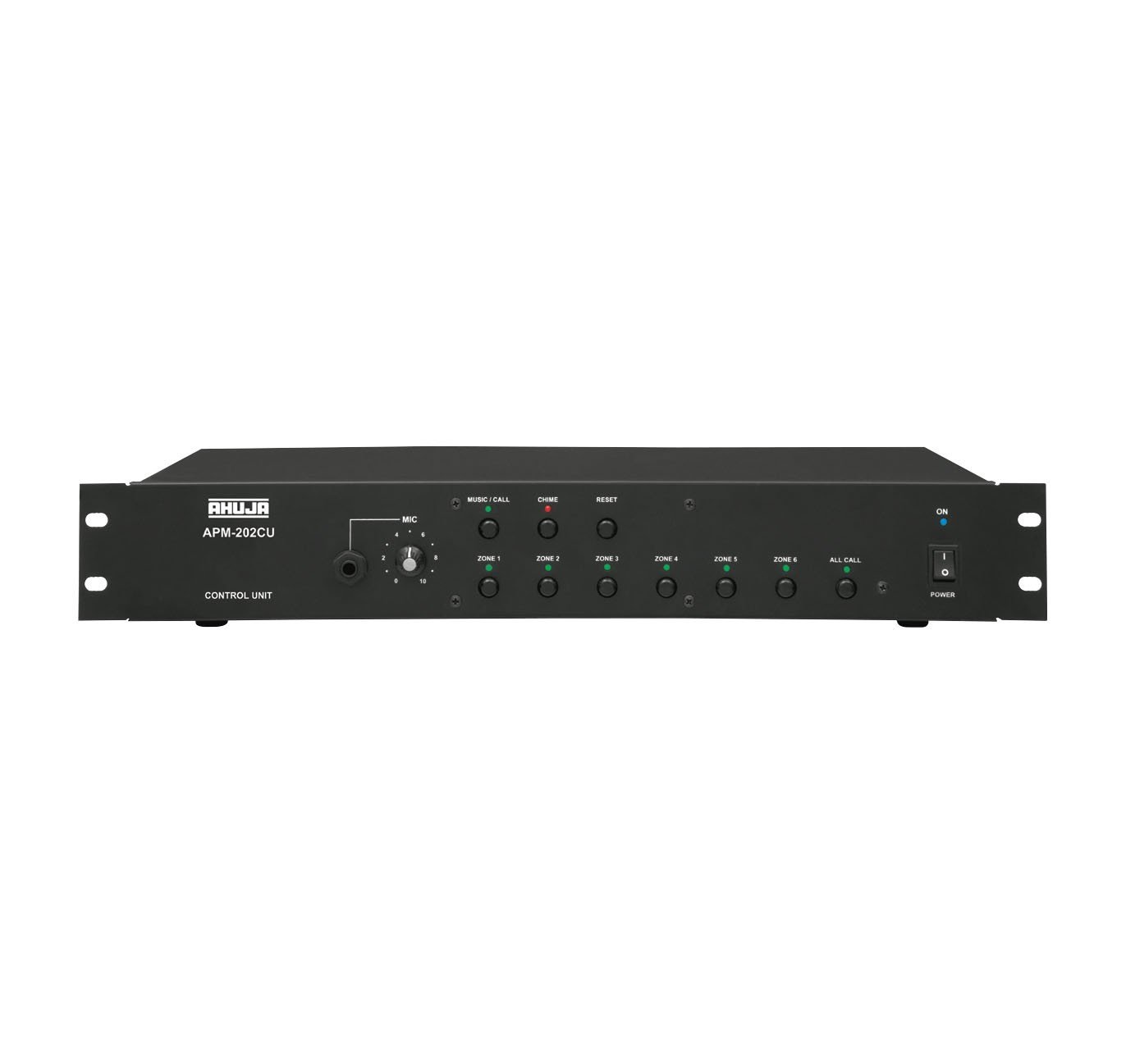

Ahuja APM-202CU Control Unit

Ahuja APM-202CU Control Unit – Professional 6-Zone Paging Controller for Clear Communication

When managing large venues, schools, offices, or public buildings, clarity and control over announcements are vital. The Ahuja APM-202CU Control Unit is designed to streamline multi-zone paging, ensuring that your message reaches the right audience with precision—whether you’re broadcasting music, announcements, or emergency messages.

What is the Ahuja APM-202CU Control Unit?

The APM-202CU is a 6-zone paging controller that offers centralized and remote paging functionality. It’s perfect for those seeking a dependable and scalable solution for zonal audio distribution across institutions, auditoriums, hospitals, or factories. It enables selective announcements in specific areas without disturbing others.

Key Features:

6-Zone Paging Control

Control up to 6 audio zones independently, or expand up to 12 zones by cascading two units. Ensure announcements are targeted and effective.

Remote Paging Integration

Easily connect up to 3 APM-201RM Remote Paging Microphones for paging from multiple remote locations. Prioritization ensures main unit commands override remote ones in critical moments.

Background Music and Paging Sync

Dual amplifier input (Channel A for music, Channel B for paging) allows the system to automatically mute background music in selected zones during paging—keeping non-target zones undisturbed.

Built-In Chime, Alarm & Priority Paging

The unit features integrated chime, reset, and emergency alarm functionality—ideal for emergency evacuations or important notifications.

Technical Specifications:

• Inputs: 3 x APM-201RM, 1 x Mic, Music & Speech Amplifier (100V), Alarm input

• Switching Signal Level: 100V

• Zone Selectors: 6 zones, expandable to 12

• Control Switches: Chime, Music/Call, Reset, All Call

• Power Supply: 220-240V AC or 24V DC (via car batteries)

• Mic & Chime Level Control: Available on board

• LED Indicators: Color-coded for music & call status

• Weight & Dimensions: 4.8kg; 483 × 75 × 300 mm

Use Cases & Best Practices

• Educational Institutions: Manage announcements by floors or buildings without disturbing entire campuses.

• Hospitals: Send alerts only to emergency areas or designated wings.

• Factories: Ensure workers in relevant sections receive operational updates clearly.

• Malls & Large Buildings: Separate paging for each floor or department improves communication flow.

Why Choose Ahuja APM-202CU?

Ahuja’s reputation in PA systems is well-established. The APM-202CU not only provides flexibility and modularity but also ensures low-distortion transmission, efficient zone control, and seamless integration with existing systems using a standard 100V signal. It’s designed with both scalability and reliability in mind.

Elevate Your Paging System and experience precise zonal communication like never before!

The Ahuja APM-202CU Control Unit is the ideal hub for centralized or remote paging. Whether you’re setting up a PA system from scratch or upgrading to a smarter solution, this controller offers unmatched performance, flexibility, and zone-level control.
