Ahuja APZ-501RM Remote Paging Mic Console
Control Up to 300 Zones from a Single Console
Cascade Up to 16 Units for Multi-Location Access
High Clarity Condenser Mic with Gooseneck Design
Elegant, Durable Aluminium Housing
Easy Zone Selection with LED Feedback
Compact and Lightweight for Versatile Installations
Plug-and-Play RJ45 Connectivity
Built-In Chime Circuit for Attention-Grabbing Paging

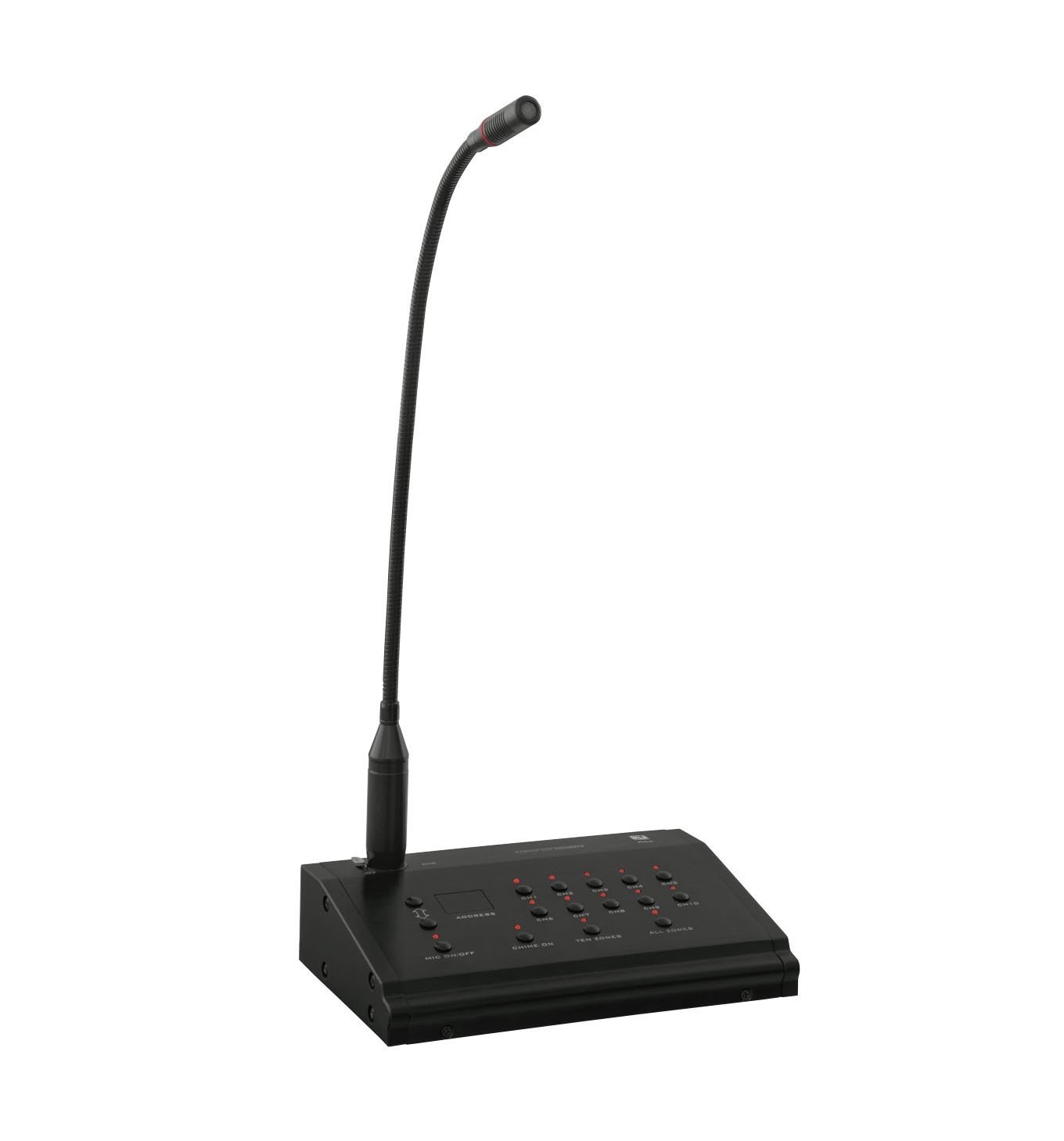

Ahuja APZ-501RM Remote Paging Microphone Console – Professional Multi-Zone Paging System
Managing announcements across multiple zones in large venues can be complex—but with the Ahuja APZ-501RM Remote Paging Mic Console, it becomes seamless. Designed for precision, clarity, and flexibility, this advanced paging system supports large infrastructures like malls, airports, campuses, and corporate parks.
Key Features of the Ahuja APZ-501RM Paging Console
Multi-Zone Paging with Precision Control
The APZ-501RM is engineered for zonal flexibility, allowing paging across individual, grouped, or all zones. It connects with up to 30 APZ-502CU controllers, enabling communication across 300 distinct zones.
Expandable, Multi-Location Paging System
With support for cascading up to 16 remote microphones using standard RJ45 cables, the system is ideal for organizations requiring multi-point paging from different locations.
User-Friendly Interface with LED Zone Display
Equipped with illuminated operation number input keys and LED display, users can instantly select and page zones. The intuitive controls include 10-zone selectors, all-zone paging, and dedicated chime/MIC buttons.
Superior Sound with Condenser Gooseneck Mic
Comes with a high-quality condenser microphone mounted on a flexible 12.5-inch gooseneck for optimal positioning and voice pickup. Built-in chime circuit ensures attention before announcements.
Specifications at a Glance
| Parameter | Details |
|---|---|
| Inputs | MIC: 600Ω, 10mV (unbalanced) Line: 10kΩ, 775mV |
| Outputs | Balanced |
| Frequency Response | MIC: 100Hz – 15kHz Line: 30Hz – 18kHz |
| S/N Ratio | MIC: 60dB Line: 80dB |
| Power Supply | DC 24V |
| Communication | Protocol: RS422 Speed: 4800bps via RJ45 |
| Build | Elegant extruded aluminium body |
| Dimensions | 220 x 51.5 x 142.7 mm |
| Weight | 1.25 kg |
Ideal Applications
Airports & Metro Stations
Educational Campuses
Hospitals & Large Buildings
Corporate Headquarters
Malls & Commercial Complexes
Smart Cities & Industrial Facilities
Let your voice reach every corner—clearly and efficiently.
Whether you’re managing a school campus, a hospital, or a massive transportation hub, the Ahuja APZ-501RM Remote Paging Mic Console offers scalable, reliable, and high-performance zonal paging. With its sleek design, advanced connectivity, and user-friendly controls, it is a must-have component for any professional PA system infrastructure.
See more Ahuja Paging Solutions
Upgrade your communication system with Ahuja APZ-501RM today. Contact us for bulk pricing, installation support, or to integrate it into your existing paging network.
