Speaker Cable 1.5 sq.mm X 2 Core Vasiform Installation
Original price was: Rs.15,000.00.Rs.10,350.00Current price is: Rs.10,350.00. Price Excluding TAX

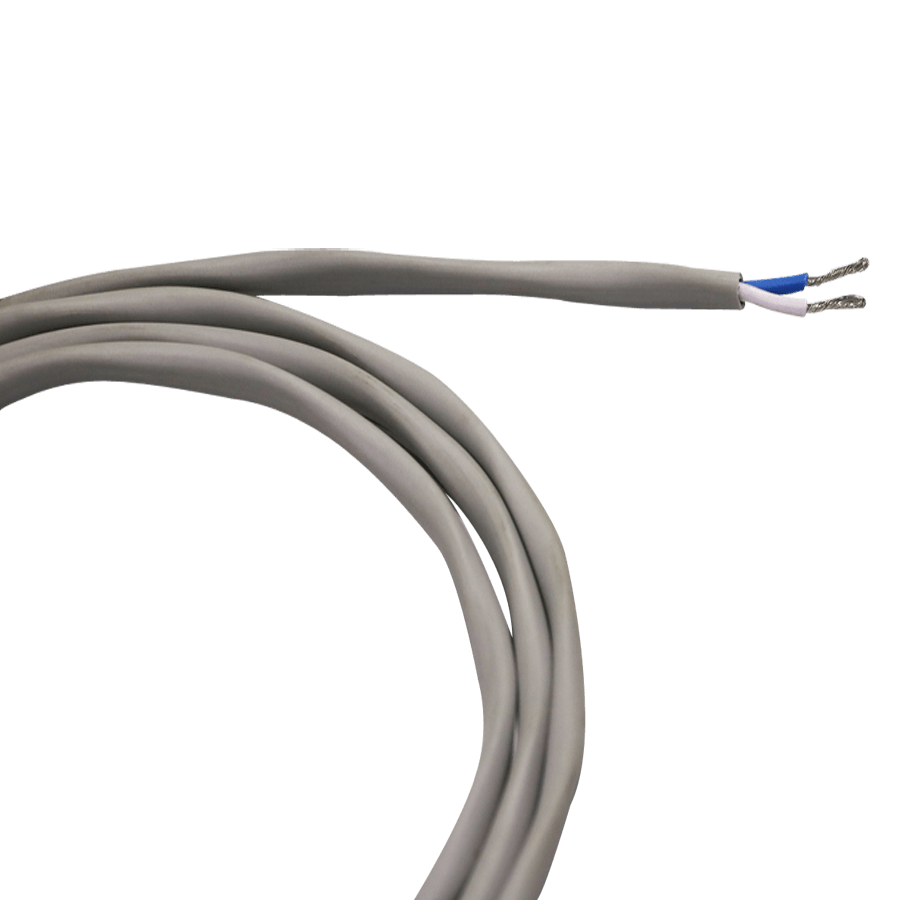

Vasiform Series Installation Speaker Cable – 1.5 Sqmm (48/0.20mm) x 2 core cable ATC copper conductor PVC insulated, core twisted, outer jacketed with Vasiform Type PVC Sheath.
Speaker Cable 1.5 sq.mm X 2 Core Vasiform Installation
Part No : SPK-EDGE-1.5-2-ATC
Vasiform Series Installation Speaker Cable – 1.5 Sqmm (48/0.20mm) x 2 core cable ATC copper conductor PVC insulated, core twisted, outer jacketed with Vasiform Type PVC Sheath.
Features
1.5 sq.mm x 2 core Cable is our Installation range of Speaker Cables.
These Vasiform Series Installation Speaker Cables are specifically designed to deliver maximum performance without taking much space in conduit.
They offer true audiophile performance for accurate sound transmission with crystal clear response, yet posses a rugged design to cater to most demanding applications.
Advantages
Each conductor is dipped in a tinned bath to make the ATC conductors and is bunched tightly to give the best performance.
Twisted cores help in rejecting crosstalk.
Cable Ruggedness & toughness helps the cable to be pulled in long runs of conduits.
Applications
Installation of Speaker signals in Auditoriums, Schools, Shopping Malls etc.
Packaging
- 100 Meters Coil
- 300 Meters Coil
SPECIFICATION:
| Part No | SPK-EDGE-1.5-2-ATC |
|---|---|
| No of Conductors | 2 |
| Conductor – No/ Size of Wire | 48/0.20mm |
| Conductor – Cross Sectional Area | 1.5 Sqmm |
| Insulation Type | PVC |
| Insulation Dia. | 2.90 mm |
| Core Colours | Blue and White |
| Sheath Type | Vasiform PVC |
| Overall OD | 7.60 mm |
| Packaging | 100 mtr coils (Heat Shrink Transparent Film) |
| Weight per coil | 7.250 Kg. |
| Master Packing | 3 Coils in a Carton box |
Electrical and Mechanical Characteristics
| DC resistance @20 °C – Conductor | 13.7.0 Ω / Km |
|---|---|
| Operating Voltage | 600 v |
| Inductance – (1kHz at 20 °C) | 0.7 μH/m |
| Capacitance – (1kHz at 20 °C) | 97pF/m |
| Voltage Breakdown | Must withstand DC 500V / 15 sec |
| Insulation resistance | 10000 M x m Min. at DC 125V, 20 °C |
| Operating Temperature | -20⁰ C to 70⁰ C |
| Dielectric Strength | 2 (KV/1 Min.) DC |
| Flex Life | 4000 cycles |
| Dielectric Constant | 4 |
