JBL CSA 2300Z Power Amplifier
Original price was: Rs.71,064.50.Rs.54,665.00Current price is: Rs.54,665.00. Price Excluding TAX
▷ Dual-Channel Professional Power Amplifier
▷ 2 × 300W Power Output
▷ 300W per Channel at 4Ω / 8Ω
▷ Supports 4Ω, 8Ω, 70V and 100V Speaker Systems
▷ Multiple AC Voltage Support: 100V / 120V / 220V / 230–240V
▷ Compact and Professional Commercial Audio Design
▷ Ideal for 70V/100V PA and Distributed Audio Systems
▷ Suitable for Offices, Hotels, Retail Stores, Schools and Conference Rooms
▷ Designed for Professional Installed Sound and Commercial PA Applications

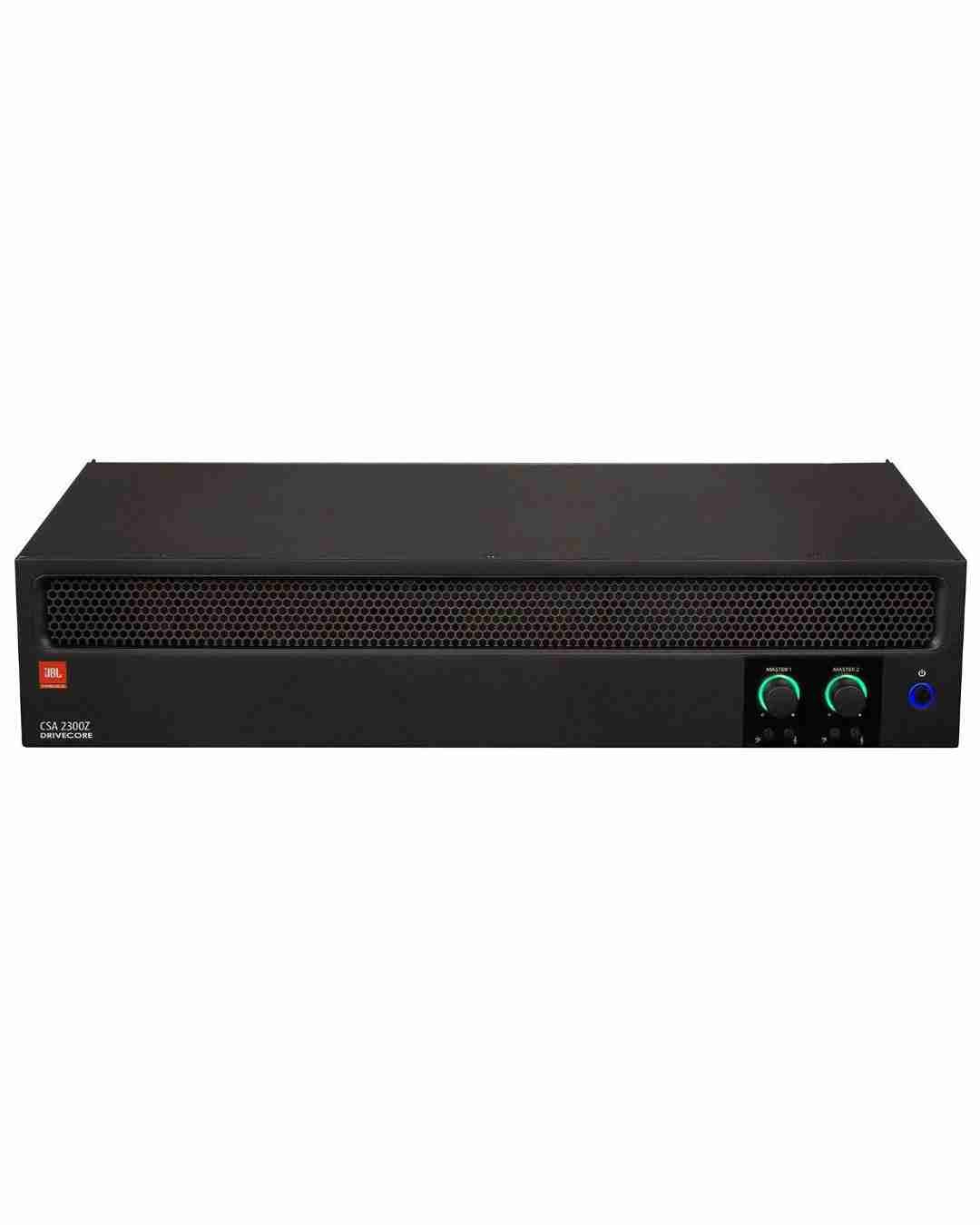

JBL CSA 2300Z Dual-Channel 300W Professional Power Amplifier
The JBL CSA 2300Z Power Amplifier is a professional dual-channel commercial power amplifier designed for installed sound, commercial PA systems and distributed audio applications. It delivers 2 × 300W power output and supports both low-impedance 4Ω/8Ω speakers and 70V/100V distributed speaker systems, making it a flexible solution for a wide range of professional audio installations.

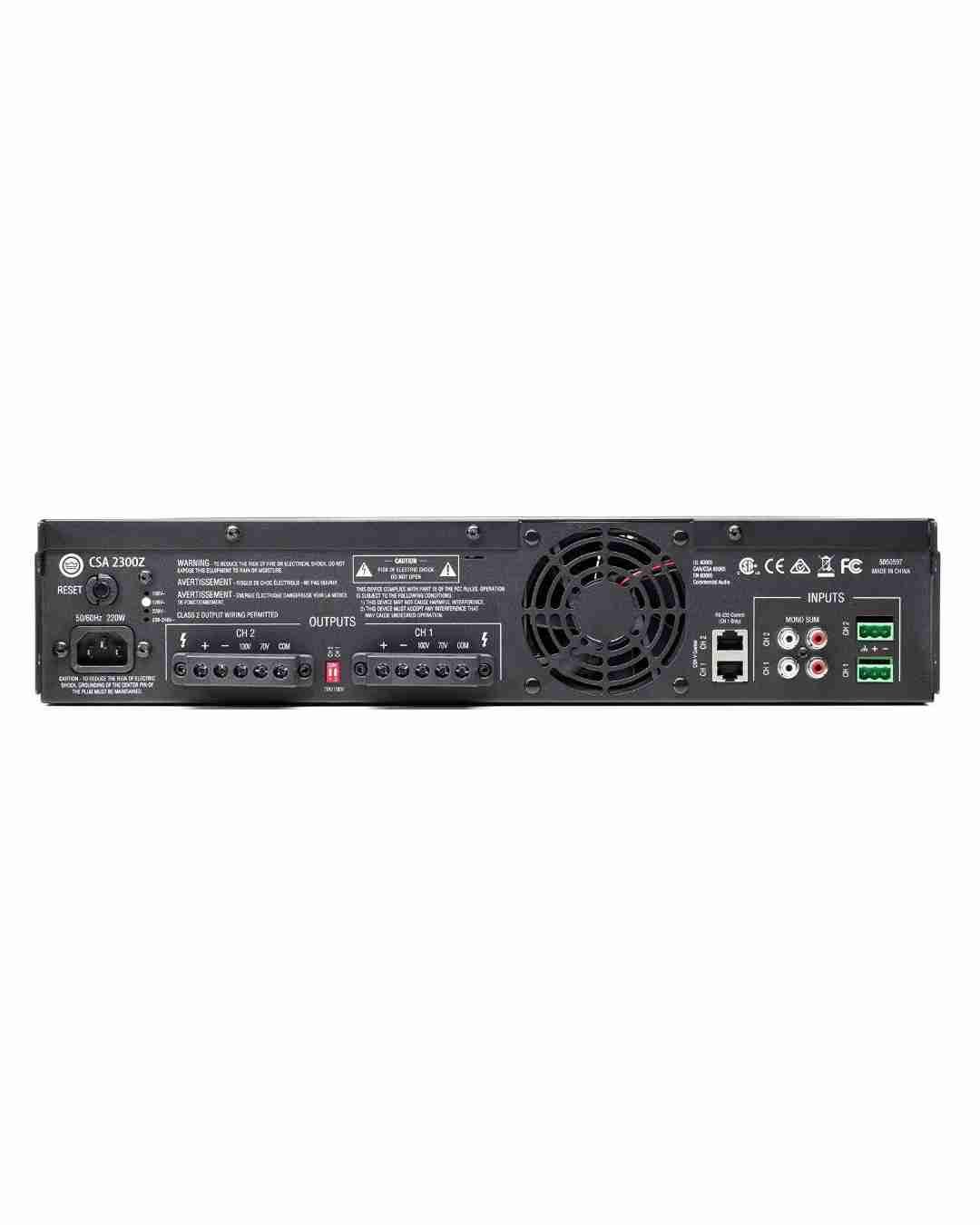

Powered by Crown DriveCore™ technology, the JBL CSA 2300Z is designed to provide reliable amplification for commercial environments. Its balanced Euroblock and RCA inputs offer flexible connectivity, while barrier-strip outputs provide convenient speaker connections.
The amplifier also includes bass and treble controls, support for the JBL CSR-V remote wall controller, and a compact 2U rack-mount design. With its flexible output options and professional installation features, the CSA 2300Z is suitable for offices, retail stores, hotels, educational institutions, conference rooms and other commercial audio projects.
FAQs
Specification
| Brand | JBL Professional |
| Model | CSA 2300Z |
| Product Type | Dual-Channel Professional Power Amplifier |
| Series | JBL Commercial Series |
| Number of Channels | 2 |
| Power Output | 2 × 300W |
| Power Rating | 300W per channel into 4Ω or 8Ω |
| Low-Impedance Output | 4Ω / 8Ω |
| 70V Output | Yes |
| 100V Output | Yes |
| Minimum Load – Low-Z | 4Ω |
| Minimum Load – 70V | 12Ω |
| Minimum Load – 100V | 24Ω |
| Frequency Response | 20 Hz – 20 kHz, ±1.0 dB at 8Ω |
| THD | <0.5% at full rated power |
| Signal-to-Noise Ratio | >97 dB, A-weighted |
| Crosstalk | < -70 dB at 1 kHz |
| Input Sensitivity – Balanced | 775 mVrms at 8Ω |
| Input Sensitivity – RCA | 300 mVrms at 8Ω |
| Input Impedance – Balanced | 20 kΩ |
| Input Impedance – RCA | 10 kΩ |
| Maximum Input Level | +22 dBu |
| Tone Controls | Bass ±12 dB @ 100 Hz / Treble ±12 dB @ 10 kHz |
| Input Connections | Balanced Euroblock / RCA Inputs |
| Output Connections | Barrier Strip Outputs |
| Remote Volume Control | Supports JBL CSR-V Wall Controller |
| Remote Connection | RJ45 / CAT5 |
| Amplifier Technology | Crown DriveCore™ Technology |
| Operating Voltage | 100V, 120V, 220V, 230–240V AC |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 0°C to 35°C |
| Operating Humidity | Up to 95% RH, non-condensing |
| Storage Temperature | -20°C to 85°C |
| Rack Mounting | Yes, 2 RU |
| Dimensions (W × D × H) | 432 × 274 × 89 mm |
| Dimensions (W × D × H) | 17.0 × 10.8 × 3.5 inches |
| Net Weight | Approx. 8.05 kg |
| Shipping Weight | Approx. 9.35 kg |
| Applications | Commercial Audio, Installed Sound, 70V/100V PA Systems, Offices, Retail, Hospitality, Education, Conference Rooms & Professional PA Systems |
