Sonodyne Conference System Controller

Rs.245,900.00 Price Excluding TAX

▷ IP Enabled Conference System Controller
▷ Supports Up to 1000 Conference Units
▷ 5-Inch Touchscreen Interface
▷ Voting & Sign-In Functions
▷ Automatic Camera Tracking
▷ USB Audio Recording
▷ DSP Audio Processing
▷ TCP/IP Network Connectivity
▷ Professional Conference Management
▷ Ideal for Boardrooms & Conference Halls
Categories: Conference system controller, Products, Sonodyne Tags: Conference Control Unit Conference Management System Conference Microphone Controller Discussion System Controller
  • Description
  • Reviews 0

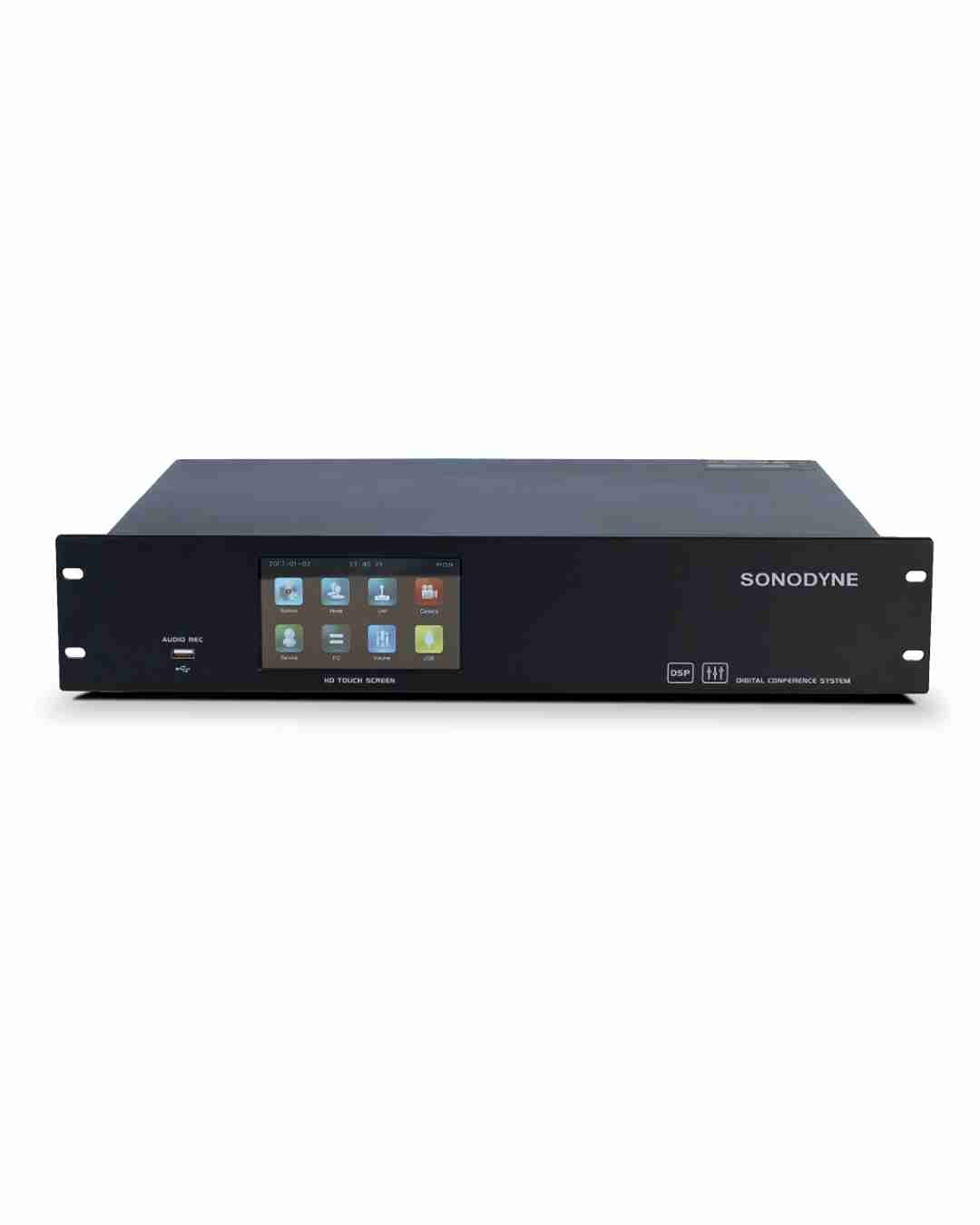

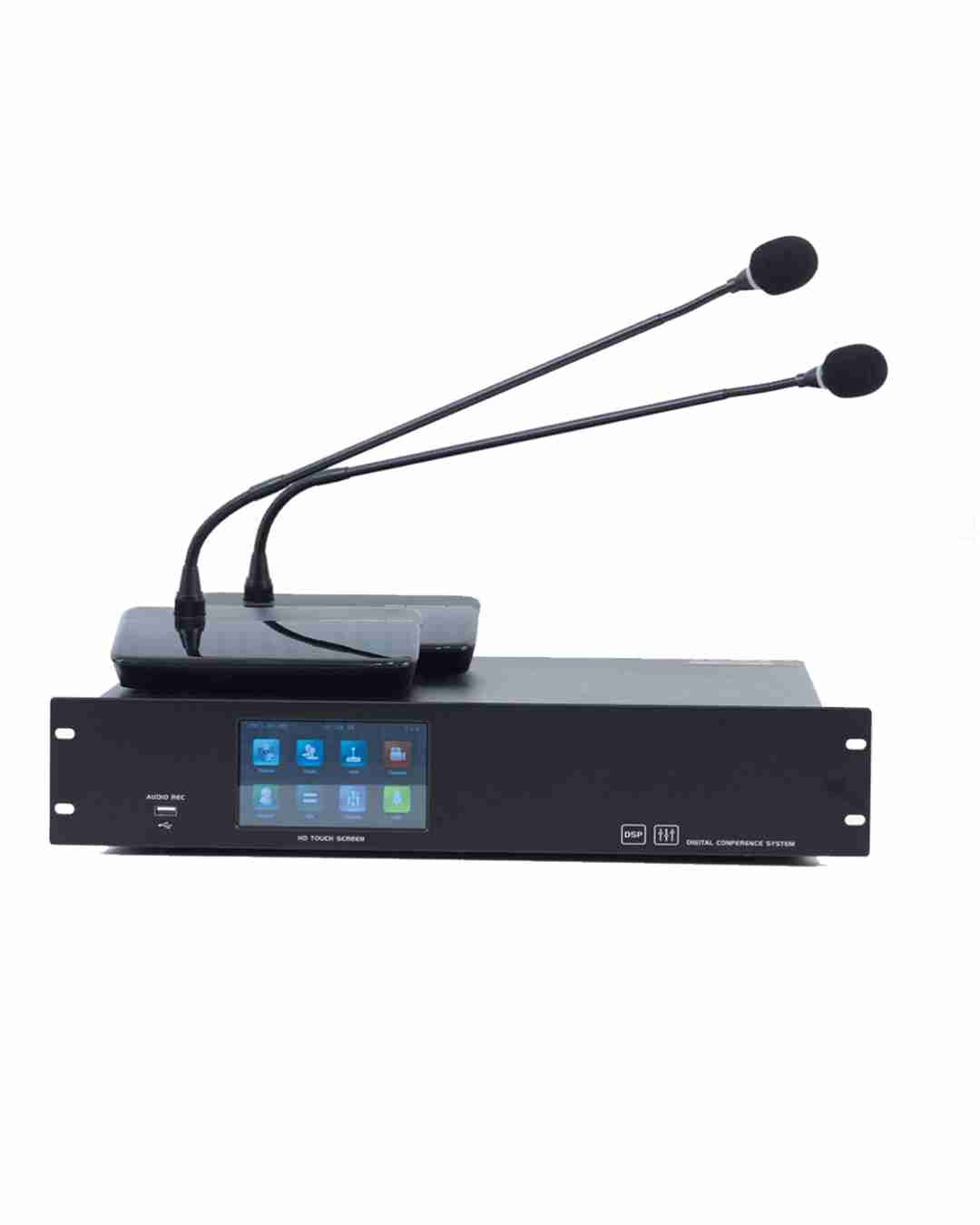

Sonodyne SYNC 1001 Main Controller Unit | IP Enabled Digital Conference System Controller

The Sonodyne SYNC 1001 Main Controller Unit is a professional IP-enabled digital conference system controller designed to manage modern conference rooms, boardrooms, auditoriums, government institutions, educational facilities, and corporate meeting environments. Built for seamless communication and efficient meeting management, the SYNC 1001 acts as the central control hub for advanced conference microphone systems.

Featuring a 5-inch IPS capacitive touchscreen, multiple discussion modes, built-in voting and sign-in functions, USB audio recording, automatic camera tracking, and DSP-based audio processing, the SYNC 1001 delivers a complete conference management solution for organizations that require reliable, scalable, and intelligent meeting infrastructure.

The system supports up to 120 conference microphones directly and can be expanded up to 1000 conference units using data extenders, making it suitable for both small meeting rooms and large-scale conference installations. With support for camera integration, video tracking, HDMI switching, TCP/IP networking, and professional audio connectivity, the Sonodyne SYNC 1001 offers everything needed for efficient, high-quality conference communication.



Frequently Asked Questions (FAQs)

1What is the Sonodyne SYNC 1001 used for?

The Sonodyne SYNC 1001 is a digital conference system controller designed to manage conference microphones, discussion modes, voting functions, sign-in systems, audio processing, camera tracking, and overall meeting control in professional conference environments.

2How many conference microphones can the system support?

The controller supports up to 120 conference units directly and can be expanded to support up to 1000 conference units using compatible data extenders, making it suitable for both small and large conference installations.

3Does the SYNC 1001 support camera tracking?

Yes. The system supports up to 8 cameras and provides automatic speaker tracking, making it ideal for video conferencing, boardroom meetings, and conference hall applications.

4Can meetings be recorded?

Yes. The built-in USB recording function allows users to record conference audio directly to a USB storage device in high-quality WAV format for documentation and future reference.

5Is the controller suitable for large conference halls and government institutions?

Absolutely. Its expandable architecture, advanced discussion management features, voting functions, sign-in capability, camera integration, and professional connectivity make it ideal for boardrooms, government organizations, educational institutions, convention centers, and large conference facilities.



Specification

Product Name Sonodyne SYNC 1001 Main Controller Unit
Product Type IP Enabled Digital Conference System Controller
Conference System Type Digital Wired Conference System
Supported Conference Units Up to 120 Microphones via 8-Core T Cable / 60 Microphones via CAT6 Cable
Expandable Capacity Up to 1000 Conference Units with Data Extender

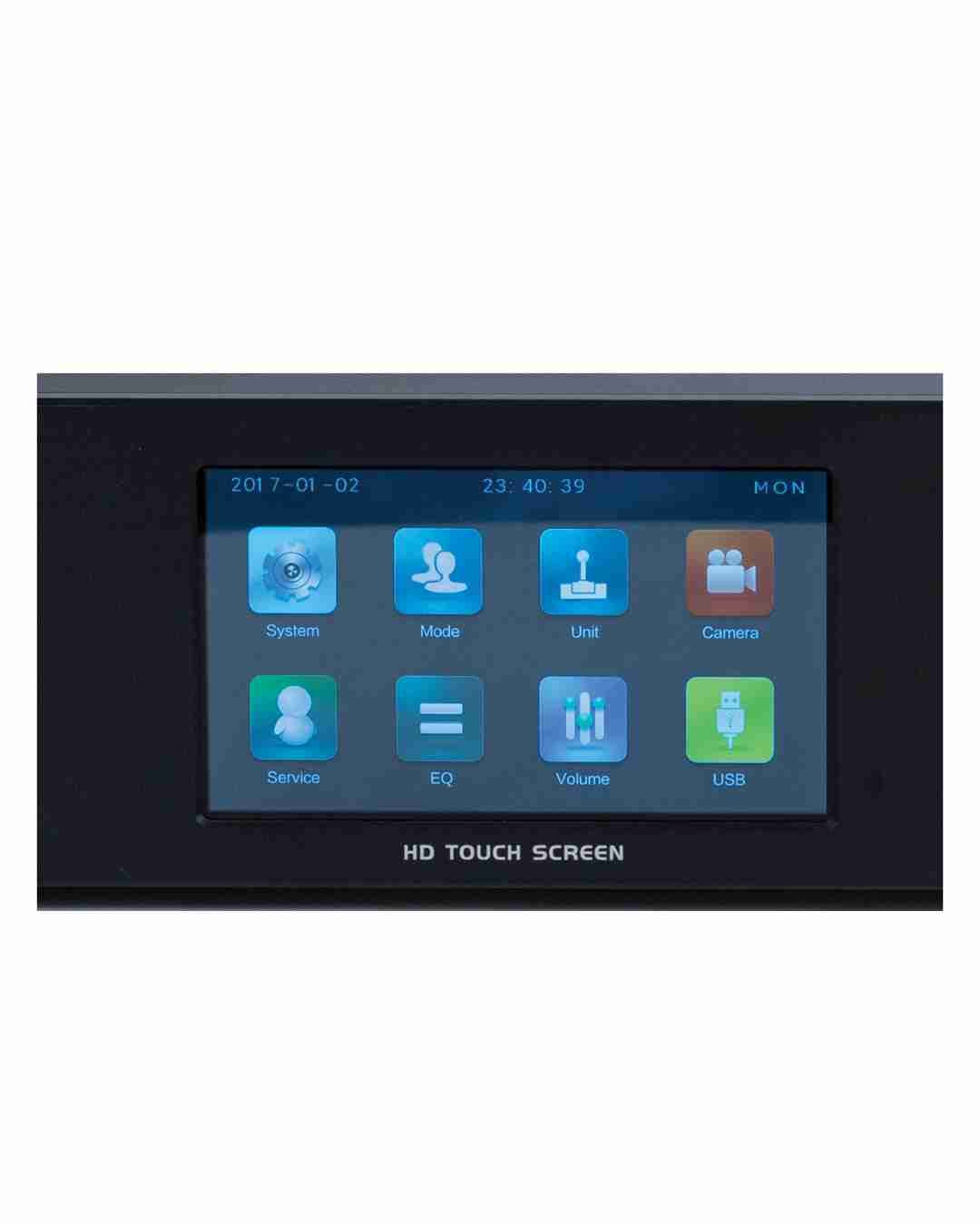

Display 5-Inch IPS Capacitive Touch Screen
Discussion Modes FIFO, APPLY, FREE, LIMIT, VOICE
Audio Frequency Response 20 Hz – 20 kHz
Audio Sampling Rate 48 kHz
Signal-to-Noise Ratio >96 dBA
Total Harmonic Distortion (THD) <0.05%
Recording Function USB Audio Recording (WAV Format)
Camera Support Up to 8 Cameras
Camera Protocols SONY VISCA, PELCO-P, PELCO-D
Video Tracking Supported
Video Switching Supports 4 HDMI Inputs (Optional)
Voting Function Yes
Sign-In Function Yes
Service Request Function Tea, Coffee, Paper, Pen & Service Call Support
Equaliser DSP-Based 32-Band Parametric Equaliser
Feedback Suppression Automatic Feedback Suppression
Network Connectivity TCP/IP Network Interface
Computer Control USB-B & RJ45 Interface
Controller Interface RS-232 (3P Connector)
Camera Control Interface RS-232 & RS-485

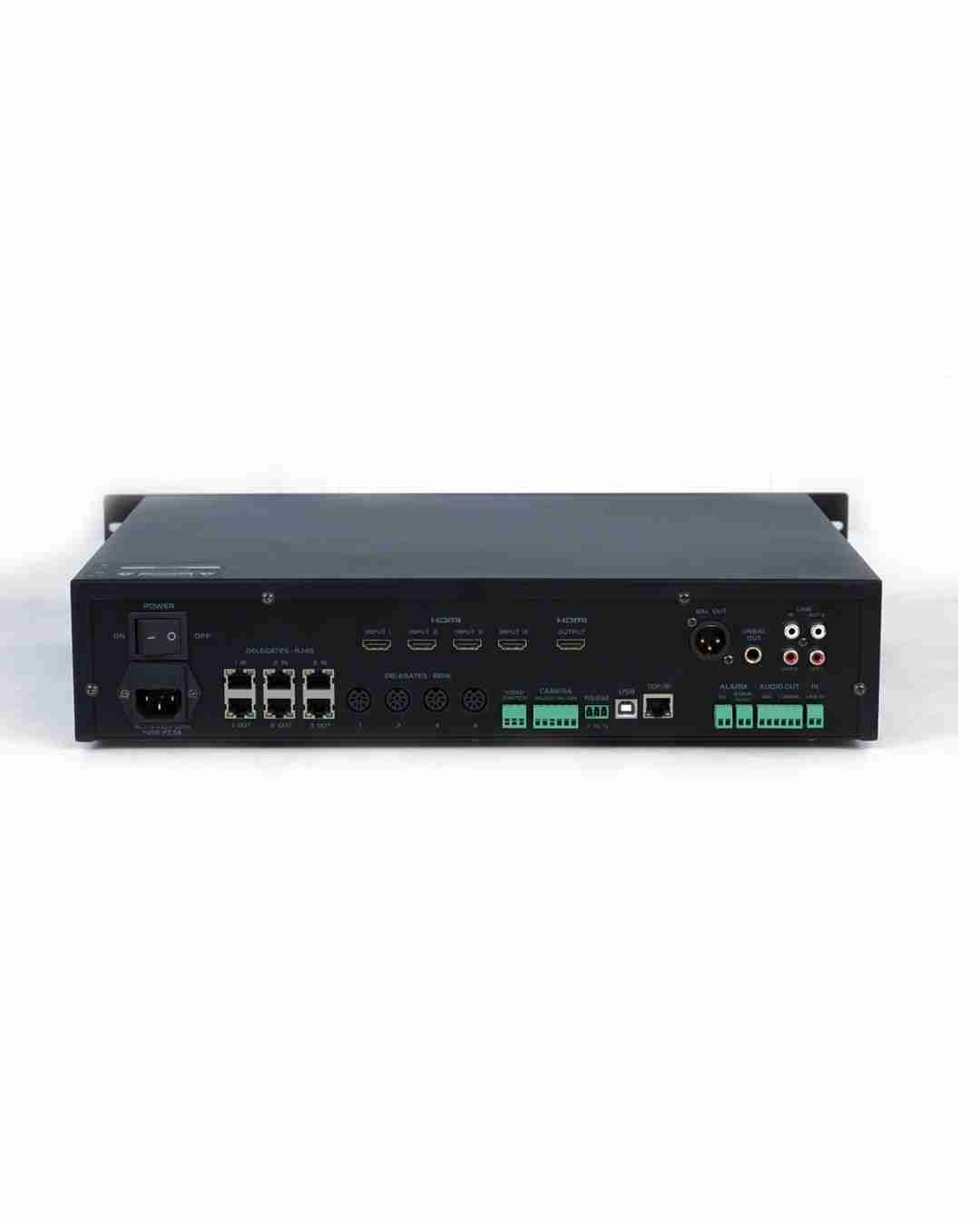

Input Connectors DIN-8 ×4, RJ45 ×3
Audio Inputs 2P Phoenix (Unbalanced) ×1, RCA (Unbalanced) ×1, Alarm Input ×1
Audio Outputs Balanced Phoenix ×1, Balanced XLR ×1, Unbalanced Phoenix ×1, 6.35mm Jack ×1, RCA ×3
Alarm Integration Alarm Trigger & Alarm Audio Input Supported
Hot Plug Support Yes
Anti-Interference Design Mobile Phone Signal Interference Protection
Power Supply AC 110V–220V / 50Hz
Installation Type Standard 2U 19-Inch Rack Mount
Applications Boardrooms, Conference Rooms, Corporate Meetings, Government Institutions, Educational Institutes, Auditoriums, Convention Centers, Video Conferencing Systems
Brand Sonodyne
Model SYNC 1001
Country of Use India
