Studiomaster V26A Active Speaker
▷ 550W Active Line Array Speaker
▷ 400W MF + 150W HF Amplifier Power
▷ 129dB Maximum SPL for high-output sound
▷ 70Hz–20kHz Frequency Response
▷ 2 × 6.5-Inch MF Drivers with 38mm voice coils
▷ 8 × 1-Inch HF Drivers with 25mm voice coils
▷ Neodymium HF Drivers for clear high-frequency reproduction
▷ Ideal for Live Sound, Concerts, Events, Touring & Professional PA Systems

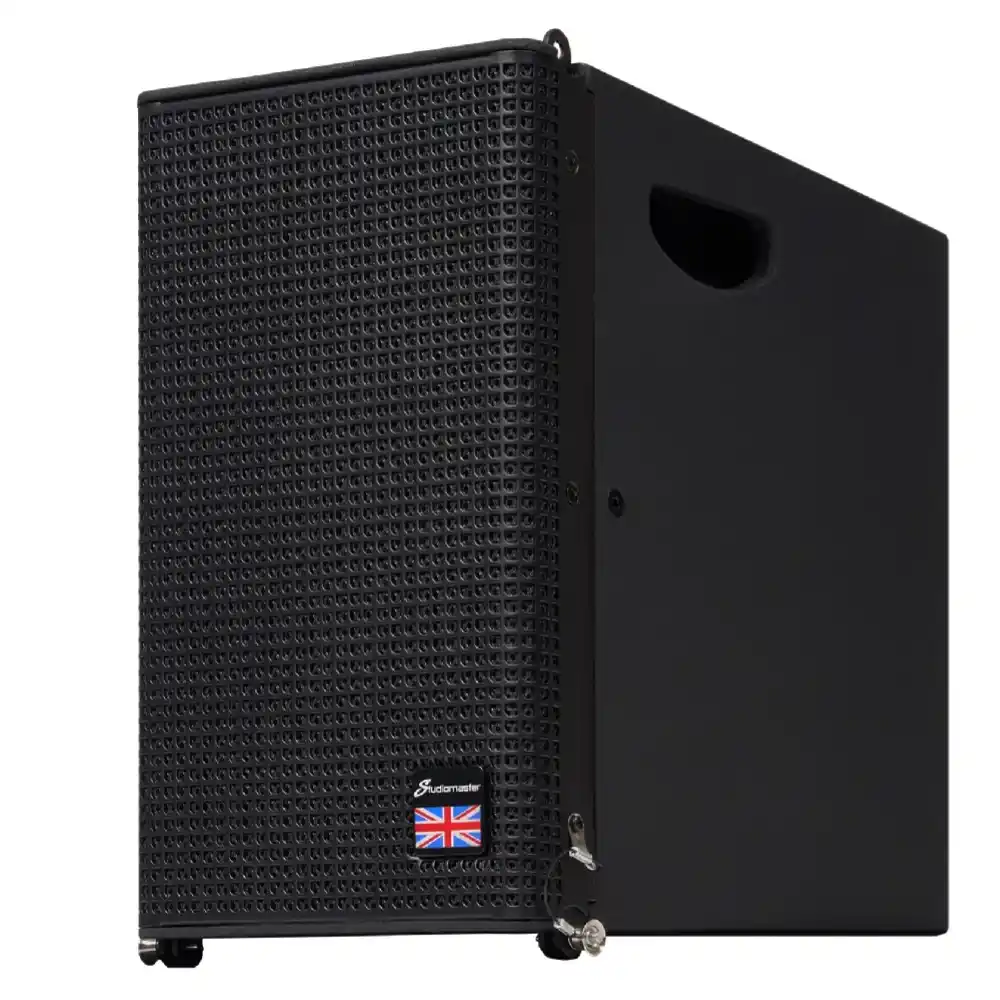

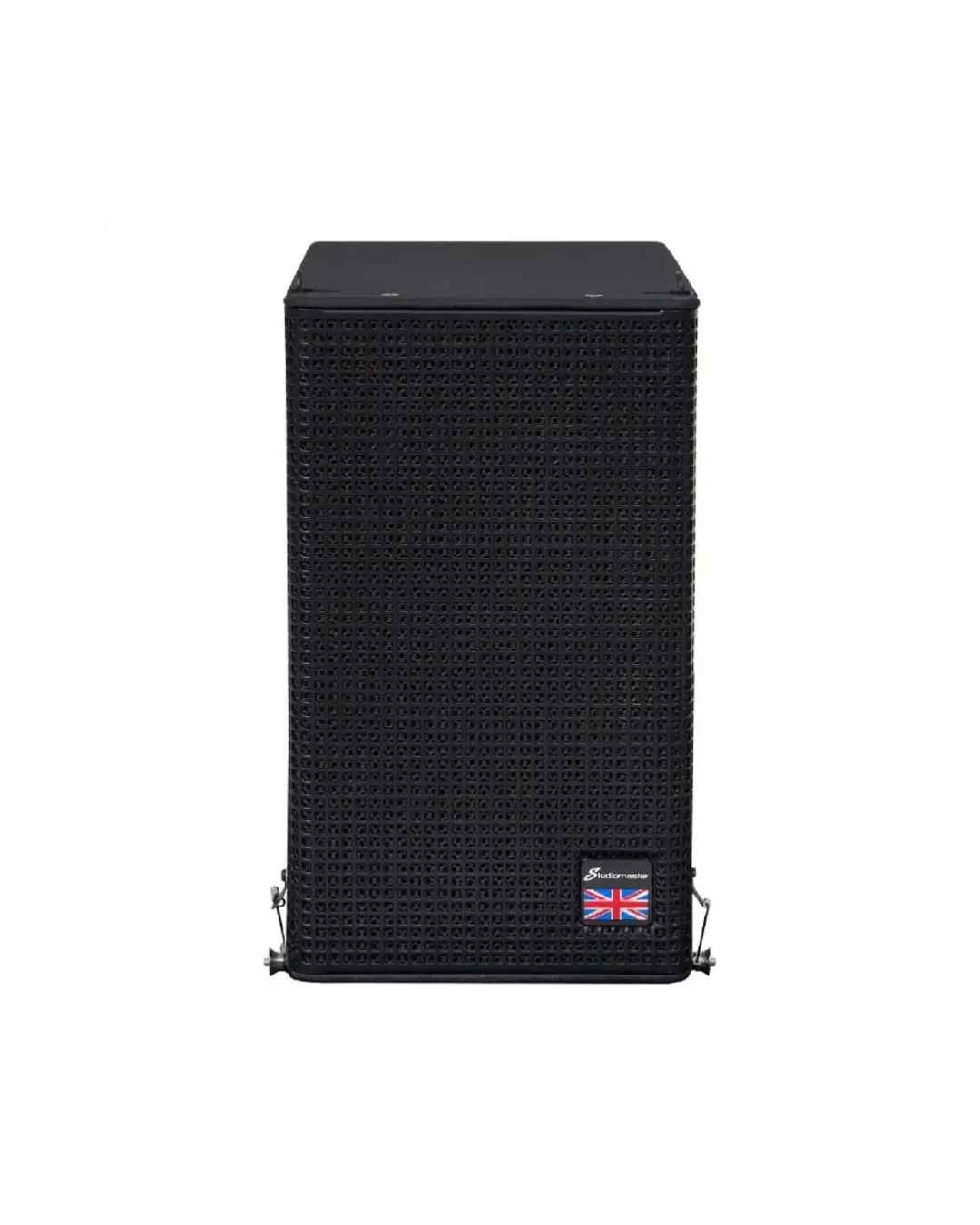

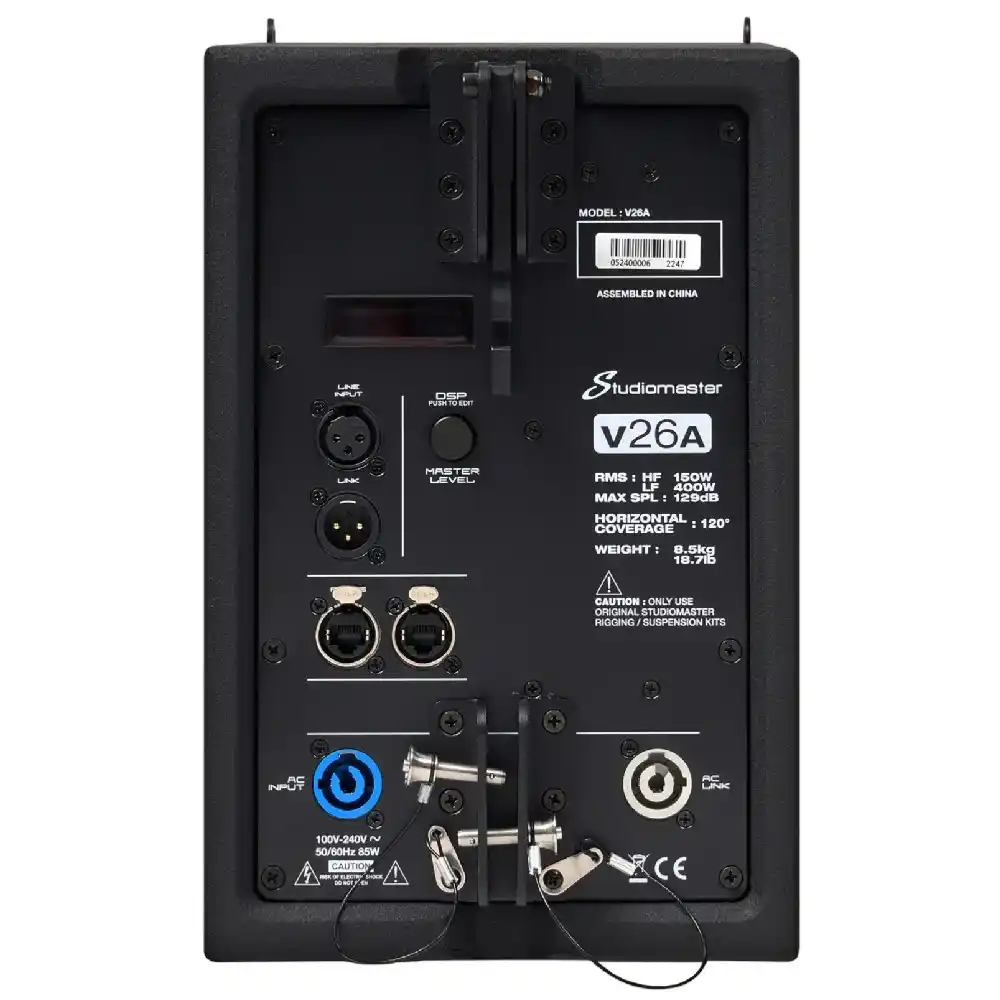

Studiomaster V26A Active 2-Way Line Array Speaker
The Studiomaster V26A Active 2-Way Line Array Speaker is a professional 550W powered line array speaker designed for high-quality sound reinforcement in live events, concerts, touring applications, installations, auditoriums, and professional PA systems. Its compact vertical line-array design provides wide horizontal coverage while allowing flexible vertical configuration for different audience areas.
The V26A features 400W MF and 150W HF amplification, delivering a total 550W of built-in amplifier power and up to 129dB maximum SPL. Its combination of two 6.5-inch mid-frequency drivers and eight 1-inch high-frequency neodymium drivers helps produce powerful midrange and clear high-frequency sound.
With a 70Hz–20kHz frequency response, the Studiomaster V26A is suitable for a wide range of professional sound reinforcement applications. The integrated DSP provides Gain, EQ, Crossover, Delay and Threshold controls, giving sound engineers greater flexibility when configuring the system.
The V26A also features 120° horizontal coverage and adjustable 0°–8° vertical splay, with adjustment in 2° steps. This makes it easier to optimize sound coverage when multiple V26A units are stacked or flown.
Frequently Asked Questions
The V26A has a 550W total built-in amplifier, consisting of 400W MF power and 150W HF power.
Specification
| Brand | Studiomaster |
| Model | V26A |
| Product Type | Active 2-Way Line Array Speaker |
| System Type | Compact Vertical Line Array |
| Amplifier Power – MF | 400W |
| Amplifier Power – HF | 150W |
| Total Amplifier Power | 550W |
| Maximum SPL | 129dB |
| Frequency Response (-10dB) | 70Hz – 20kHz |
| MF Drivers | 2 × 6.5″ / 38mm Voice Coil |
| HF Drivers | 8 × 1″ / 25mm Voice Coil |
| HF Driver Type | Neodymium |
| Coverage (H × V) | 120° × 8° |
| DSP | Gain, EQ, Crossover, Delay & Threshold |
| Crossover Frequency | DSP Controlled |
| Vertical Splay Angle | 0°–8° |
| Splay Adjustment | 2° Steps |
| Cabinet Type | 2-Way Active Line Array |
| Dimensions (W × H × D) | 205 × 354 × 340 mm |
| Weight | 8.5 kg |
| Mounting | Stacking / Flying |
| Applications | Live Sound, Touring, Events, Installations & Professional PA |
