Audio-Technica ATND1061 Ceiling Array Microphone
Rs.350,000.00 Price Excluding TAX
▷ Advanced Beam forming Ceiling Array Microphone Technology
▷ Supports Up to 32 User-Defined Pickup Zones
▷ Provides 6 Independent Audio Output Channels
▷ Up to 16 Custom Coverage Zones on Channel 1
▷ 90° Orthogonal Beam forming for Accurate Voice Capture
▷ Built-In Voice Activity Detection (VAD) Technology
▷ 24-Bit / 48kHz Professional Digital Audio Processing
▷ Integrated Acoustic Echo Cancellation (AEC)
▷ Automatic Mixing for Seamless Multi-Participant Discussions
▷ Noise Reduction Technology for Enhanced Speech Clarity
▷ Automatic Gain Control (AGC) for Consistent Audio Levels
▷ Built-In 4-Band Equalizer for Audio Optimization
▷Analog Input and Output Connectivity via Euro block Connectors

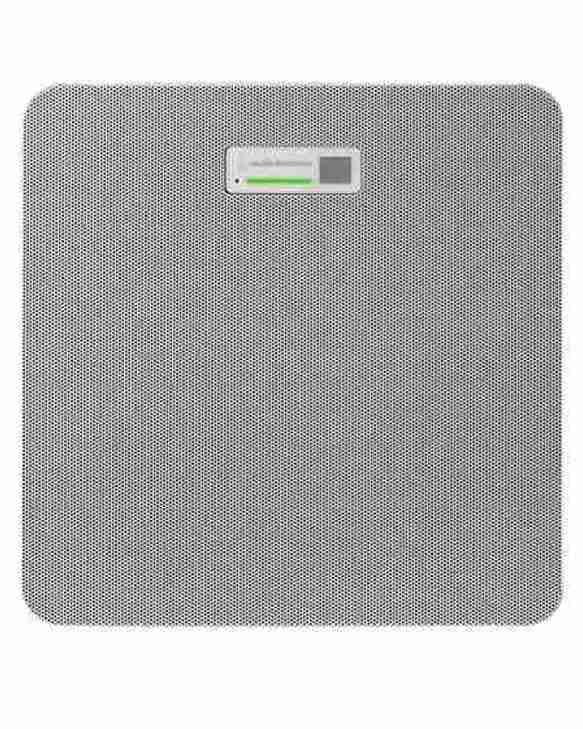

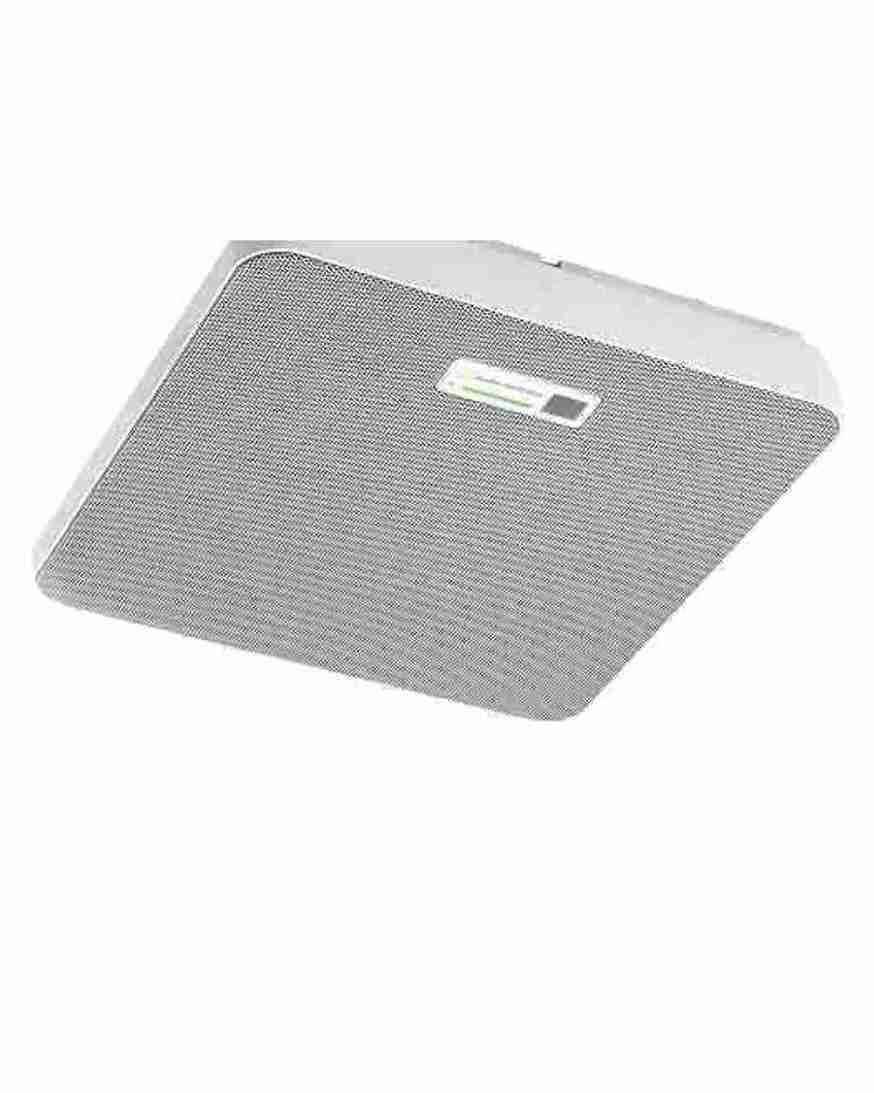

Audio-Technica ATND1061 Ceiling Array Microphone
The Audio-Technica ATND1061 Ceiling Array Microphone is an advanced beam forming microphone solution engineered for modern conference rooms, boardrooms, hybrid meeting spaces, and collaborative environments. Designed to deliver exceptional voice clarity and seamless integration with professional AV systems, the ATND1061 captures every participant’s voice naturally while maintaining a clean, clutter-free meeting space.
Utilising innovative beam forming technology with proprietary Voice Activity Detection (VAD), the ATND1061 automatically focuses on active speakers while minimizing background noise and unwanted room reflections. The microphone supports up to 32 user-defined pickup zones and six independent audio output channels, providing remarkable flexibility for various room configurations.
Built-in DSP processing, including Acoustic Echo Cancellation (AEC), auto mixing, noise reduction, automatic gain control (AGC), and 4-band equalisation, ensures outstanding audio performance without requiring extensive external processing. The ATND1061 also supports camera tracking functionality, making it ideal for video conferencing and hybrid collaboration applications.
With flexible mounting options such as flush mount, surface mount, drop ceiling, and hard ceiling installation, the microphone blends seamlessly into professional environments. Dante networking support on compatible models allows easy integration into networked audio infrastructures, while PoE capability simplifies installation by delivering power and data through a single network cable.
Whether deployed in corporate boardrooms, educational institutions, training centers, or executive meeting spaces, the Audio-Technica ATND1061 provides a premium ceiling microphone solution designed to enhance communication and improve meeting productivity.
Frequently Asked Questions (FAQs)
The ATND1061 is a beamforming ceiling array microphone designed for conference rooms, hybrid meetings, video conferencing, and collaborative workspaces requiring high-quality voice capture.
The microphone supports up to 32 user-defined pickup zones, allowing flexible coverage for various room layouts.
Yes. It features Acoustic Echo Cancellation (AEC), automixing, noise reduction, automatic gain control (AGC), and 4-band EQ processing.
Yes. Dante functionality is available on the ATND1061DAN model, enabling seamless integration with networked audio systems.
The microphone is ideal for boardrooms, conference rooms, training spaces, educational institutions, government facilities, and professional hybrid meeting environments.
Specification
| Product Model | Audio-Technica ATND1061 |
| Product Type | Beam forming Ceiling Array Microphone |
| Microphone Type | Ceiling-Mounted Array Microphone |
| Technology | Beam forming Array with Voice Activity Detection (VAD) |
| System Compatibility | Professional Conferencing and Collaboration Systems |
| Pickup Zones | Up to 32 User-Defined Pickup Zones |
| Output Channels | 6 Independent Audio Output Channels |
| Coverage Zones | Up to 16 User-Defined Coverage Zones on Channel 1 |
| Beam Width | 90° Orthogonal Beam forming |
| Polar Pattern | Beam forming Pattern |
| Frequency Response | 60Hz – 18,000Hz |
| Sensitivity | -8 dBFS (1kHz, 94 dB SPL) |
| Maximum Input Sound Level | 102 dB SPL |
| Dynamic Range | 89 dB (A-Weighted) |
| Signal-to-Noise Ratio | 61.5 dB (A-Weighted) |
| Self-Noise | 25 dB SPL (A-Weighted) |
| Digital Audio | 24-bit / 48kHz |
| DSP Functions | Acoustic Echo Cancellation (AEC), Auto mix, Noise Reduction, AGC, 4-Band EQ |
| Voice Activity Detection | Proprietary VAD Technology |
| Camera Tracking Support | Yes |
| Network Connectivity | Dual RJ45 Network Ports (ATND1061DAN) |
| Dante Support | Yes (ATND1061DAN Model) |
| Control Interface | Web Remote & Digital Microphone Manager Software |
| GPIO Interface | 3-Pin Euro-block GPIO Connector |
| Analog Input | 3-Pin Euro block Connector |
| Analog Output | 3-Pin Euro-block Connector |
| Power Requirement | PoE (IEEE 802.3af Class 0) |
| Power Consumption | Maximum 7W |
| Mounting Options | Flush Mount, Surface Mount, Drop Ceiling, Hard Ceiling, Open Architecture |
| Plenum Rating | UL 2043 Compliant |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 25% to 85% Non-Condensing |
| Dimensions (W × D × H) | 227.5 × 227.5 × 30 mm |
| Weight | 1.25 kg |
| Finish | Low-Reflective White |
| Included Accessories | Flush Mount Adapter, Surface Mount Adapter, Tile Bridge Assembly, Safety Cable, Euro-block Connectors, Installation Hardware, IR Remote Controller |
| Applications | Boardrooms, Conference Rooms, Hybrid Meeting Spaces, Training Rooms, Corporate Offices, Educational Institutions & Professional Collaboration Environments |
