Audio-Technica ATDM-1012 DAN Digital Mixer
Rs.253,606.00 Price Excluding TAX
▷ Dante Enabled Digital Smart Mixer for Professional
▷ 14×12 Full-Matrix DSP Audio Mixer for Flexible Signal Routing
▷ 10 Balanced Mic/Line Inputs for Multi-Microphone Installations
▷ 2 Stereo Line Inputs for Additional Audio Sources
▷ 8 Balanced Outputs for Professional Audio Distribution
▷ 2 Unbalanced Stereo Outputs for Expanded Connectivity
▷ Supports 10 Additional Digital Inputs via Dante™ or AT-LINK
▷ Automatic Gain Sharing and Gate Mixing Modes
▷ 4-Band Parametric EQ on Each Input Channel
▷ Built-In Compressor and De-Esser Processing
▷ Phase Inversion and Low-Cut Filter Functions
▷ Independent Bus Routing with Output Volume Control
▷ 24-Bit USB Audio Interface for Computer Integration

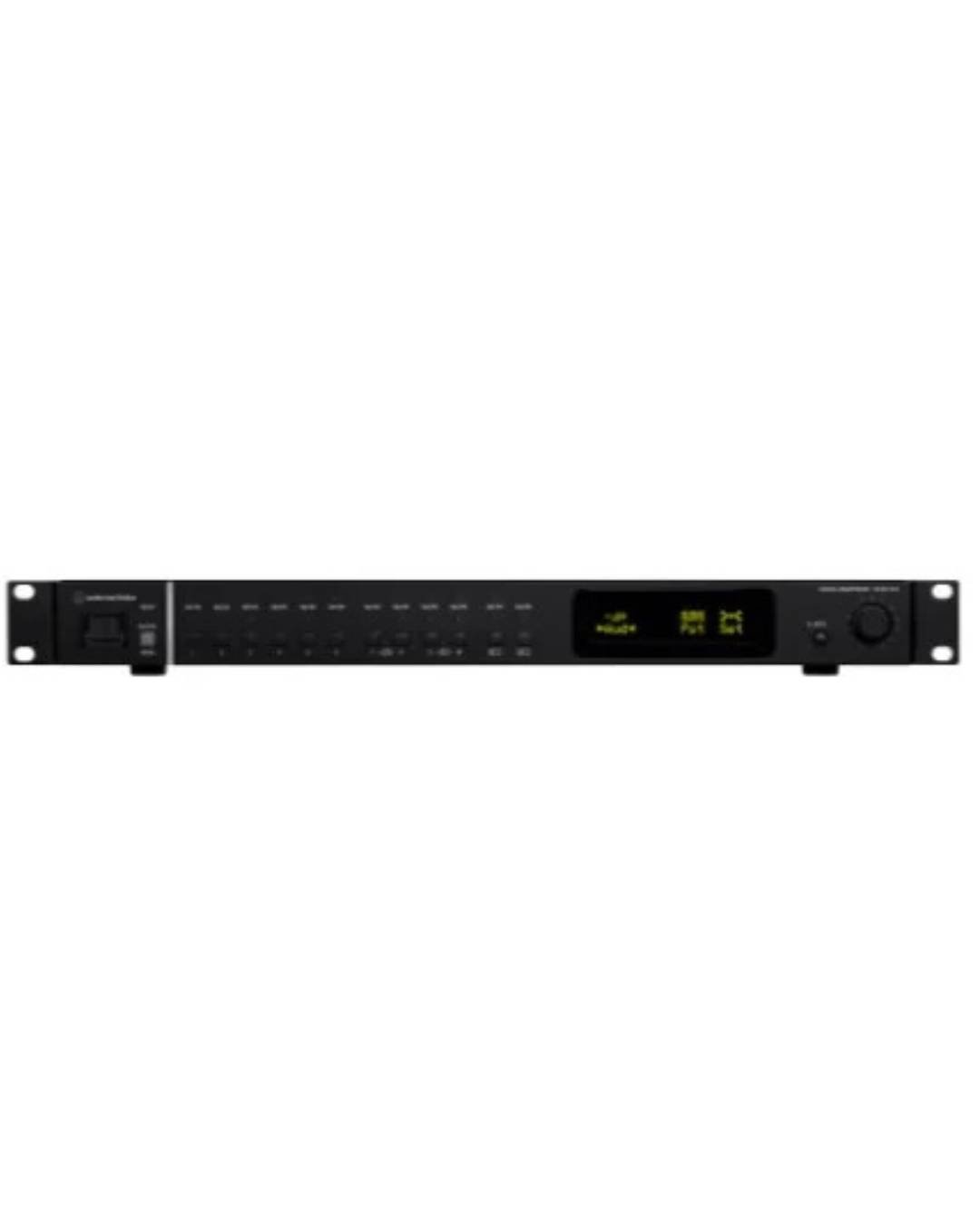

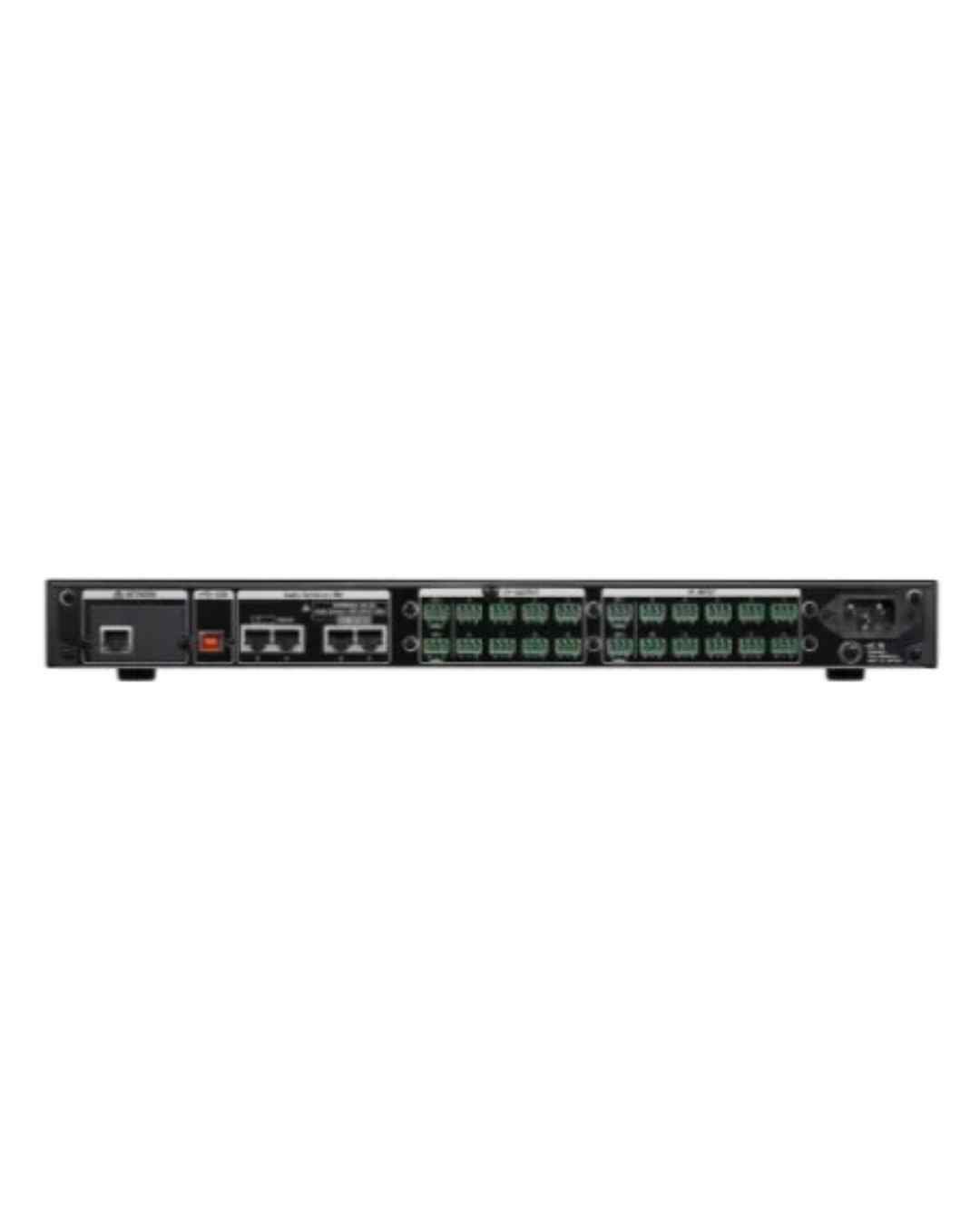

Audio-Technica ATDM-1012DAN Digital Smart Mixer with Dante
The Audio-Technica ATDM-1012DAN Digital Smart Mixer is a premium full-matrix DSP audio mixer engineered for professional conferencing, hybrid meeting environments, educational institutions, courtrooms, hospitality venues, and advanced AV installations. Combining intelligent Smart Mixer technology with Dante™ network audio capability, this powerful mixer delivers exceptional speech clarity, flexible routing, and seamless integration for today’s demanding communication spaces.
Designed with a 14-input / 12-bus matrix architecture, the ATDM-1012DAN features 10 balanced mic/line inputs, 2 stereo line inputs, and support for 10 additional digital inputs through Dante networking or Audio-Technica LINK. Its advanced Gain Sharing and Gate mixing modes automatically manage microphone levels, ensuring natural conversations without background distractions.
The mixer incorporates 10 assignable Acoustic Echo Cancellation (AEC) processors, intelligent Noise Cancellation, and Feedback Suppression to optimise audio quality during video conferences and live discussions. Comprehensive DSP tools including parametric EQ, compression, de-essing, phase inversion, and low-cut filtering allow precise control over every audio source.
With dual Dante network ports for redundant operation, web-based remote management, USB audio connectivity, and support for cascading up to eight ATDM devices, the ATDM-1012DAN offers unmatched flexibility for scalable professional audio systems.
Frequently Asked Questions (FAQs)
The ATDM-1012DAN is a professional Digital Smart Mixer designed for conference rooms, hybrid meetings, educational institutions, courtrooms, and commercial AV installations requiring automatic microphone mixing and Dante™ network audio integration.
Yes. The mixer features dedicated Dante™ Primary and Secondary ports, enabling seamless integration with Dante-enabled audio systems.
The mixer offers 10 balanced mic/line inputs and supports additional digital inputs through Dante™ or Audio-Technica LINK expansion.
Yes. It includes 10 assignable Acoustic Echo Cancellation (AEC) processors to improve speech clarity during video conferencing applications.
Yes. The mixer supports Web Remote Manager software and IP-based third-party control protocols for convenient system management.
Specification
| Product Model | Audio-Technica ATDM-1012DAN |
| Product Type | Digital Smart Mixer with Dante |
| Mixer Type | Full-Matrix Automatic DSP Audio Mixer |
| Matrix Configuration | 14 Inputs / 12 Bus Matrix Mixer |
| Smart Mixer Modes | Gain Sharing Mode / Gate Mode |
| Mixing Groups | 4 Assignable Smart Mixing Groups |
| Microphone Inputs | 10 x Balanced Mic/Line Inputs |
| Stereo Inputs | 2 x Stereo Line Inputs |
| Balanced Outputs | 8 x Balanced Outputs |
| Unbalanced Outputs | 2 x Unbalanced Stereo Outputs |
| Digital Expansion | 10 Additional Digital Inputs via Dante or Audio-Technica LINK |
| Dante Networking | Dante™ Primary and Secondary Network Ports |
| USB Audio Interface | 1 Stereo Input / 1 Stereo Output (24-Bit) |
| Echo Cancellation | 10 Assignable Acoustic Echo Cancellation (AEC) Processors |
| Noise Cancellation | Assignable Noise Cancelling (NC) Processing |
| Feedback Suppression | 8 Assignable Feedback Suppressors |
| Smart Mixer Technology | Independent 4-Group Smart Mixer with Gain Sharing or Gate Modes |
| Input DSP Functions | 4-Band Parametric EQ, Compressor, Dessert, Phase Inversion, Low-Cut Filter |
| Output DSP Functions | Independent Bus Routing with Volume Control |
| Maximum Gain | 64 dB |
| Frequency Response | 20Hz – 20kHz |
| Dynamic Range | 110 dB or Higher (A-Weighted) |
| Signal-to-Noise Ratio | 90 dB or Higher (A-Weighted) |
| Total Harmonic Distortion | ≤ 0.03% @ 1kHz |
| Headroom | 20 dB |
| Input Referred Noise | ≤ -127 dBu |
| Common-Mode Rejection Ratio | ≥ 80 dB @ 1kHz |
| Residual Noise | ≤ -88 dBu |
| Phantom Power | +48V DC |
| Remote Control | Web Remote Manager Software |
| External Control | IP-Based Remote Control Protocol |
| Network Ports | 2 x RJ45 (Dante™ Primary / Secondary) |
| Audio-Technica LINK Ports | 4 x RJ45 LINK/CHAIN Ports |
| Cascade Support | Up to 8 ATDM Devices via Audio-Technica LINK |
| ES954 Compatibility | Supports Up to 2 ES954 Hanging Microphone Arrays |
| USB Connector | USB Type-B (24-Bit Audio) |
| A/D Converter | 24-Bit, 115 dB Dynamic Range |
| D/A Converter | 24-Bit, 115 dB Dynamic Range |
| Input Connectors | Euro block 3-Pin Connectors |
| Output Connectors | Euro block 3-Pin Connectors |
| Power Supply | AC 100 – 240V, 50/60Hz |
| Power Consumption | 65W |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 25% – 85% (Non-Condensing) |
| Dimensions (W × D × H) | 482.6 × 324.3 × 44 mm |
| Rack Size | 1U, 19-Inch Rack Mountable |
| Weight | 3.6 kg |
| Included Accessories | Power Cable, 22 Euro block Connectors |
| Applications | Boardrooms, Hybrid Meeting Rooms, Courtrooms, Educational Institutions, Hospitality Venues, Corporate Offices, Broadcast Facilities & Professional AV Installations |
You must be logged in to post a review.
You may also like…

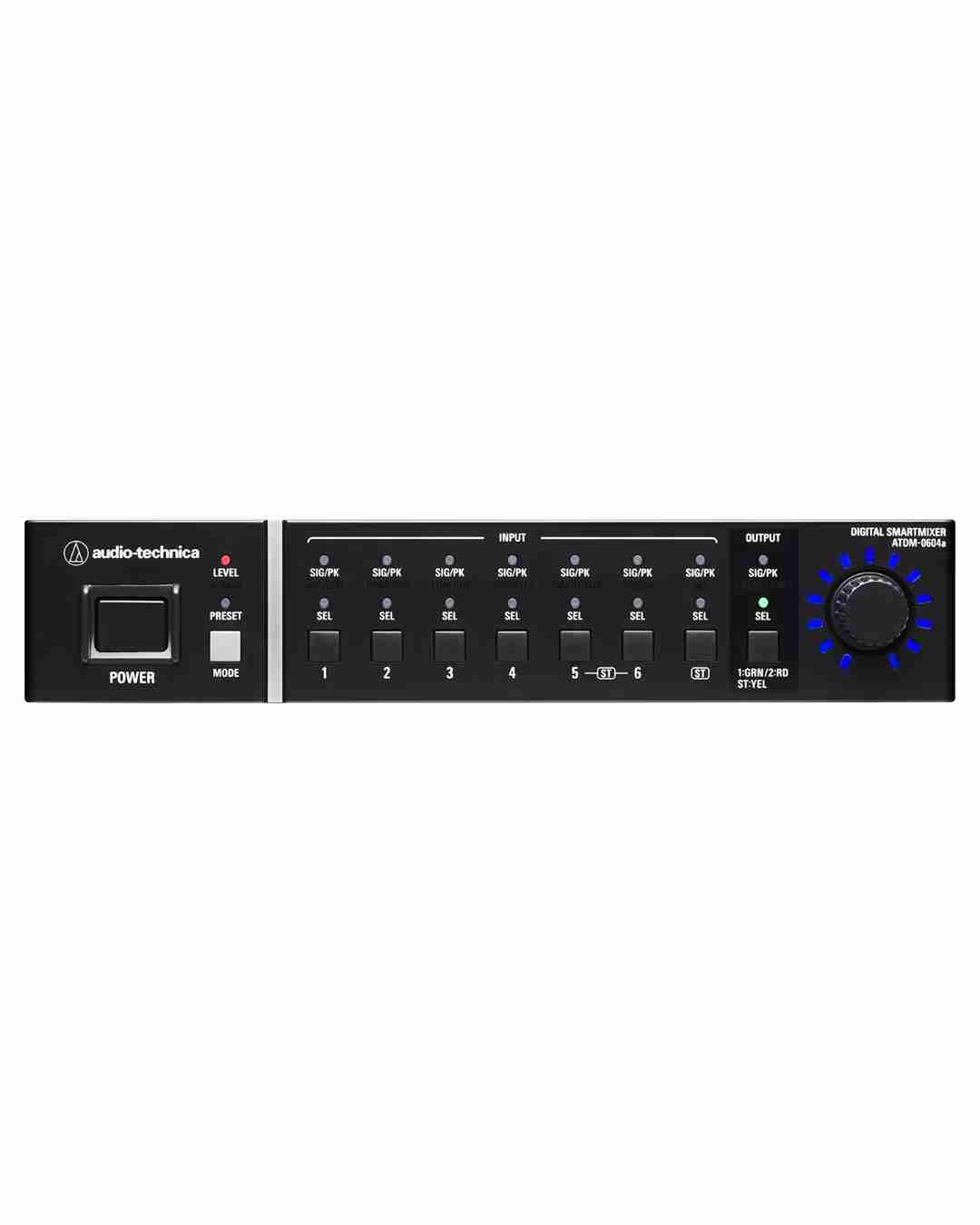

Audio-Technica ATDM-0604a Digital Smart Mixer
