Sonodyne XRS10ODV Passive Speaker
Rs.80,250.00 Price Excluding TAX
▷ Professional 10-Inch Outdoor Passive Speaker
▷ Powerful 250W Continuous Power Handling
▷ 500W Program Power and 1000W Peak Power Capacity
▷ High-Performance 2-Way Speaker Design
▷ 10-Inch Woofer for Strong Bass and Clear Audio
▷ 1.5-Inch Compression Driver for Detailed High Frequencies
▷ Built-In 70V / 100V Line Transformer
▷ Multiple Power Taps: 150W / 75W / 37.5W
▷ Supports Both 70V/100V Line and 8 Ohm Systems
▷ Wide 90° x 90° Sound Coverage
▷ High 95dB Sensitivity for Efficient Performance
▷ Perfect for Hotels, Resorts, Schools and Stadiums

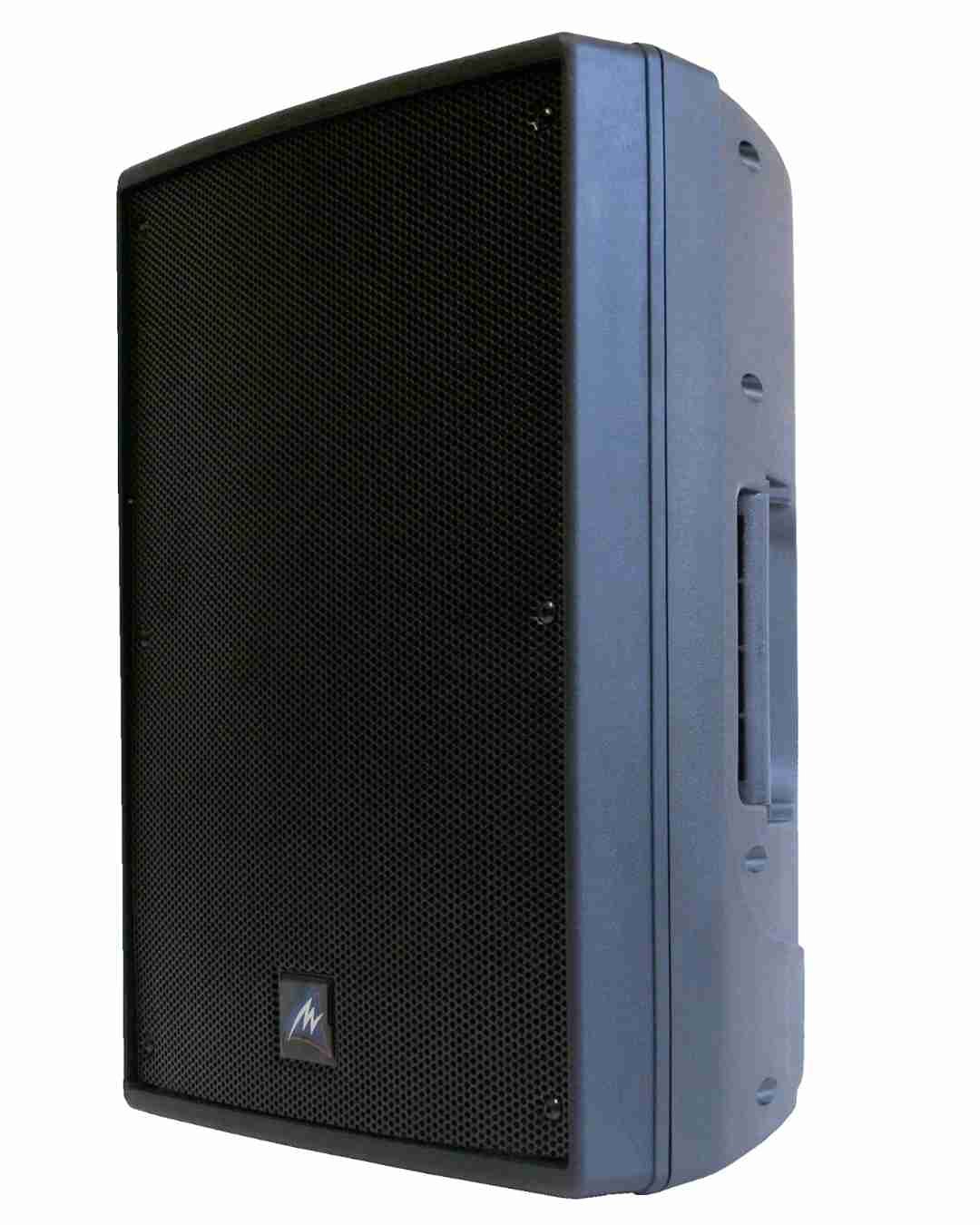

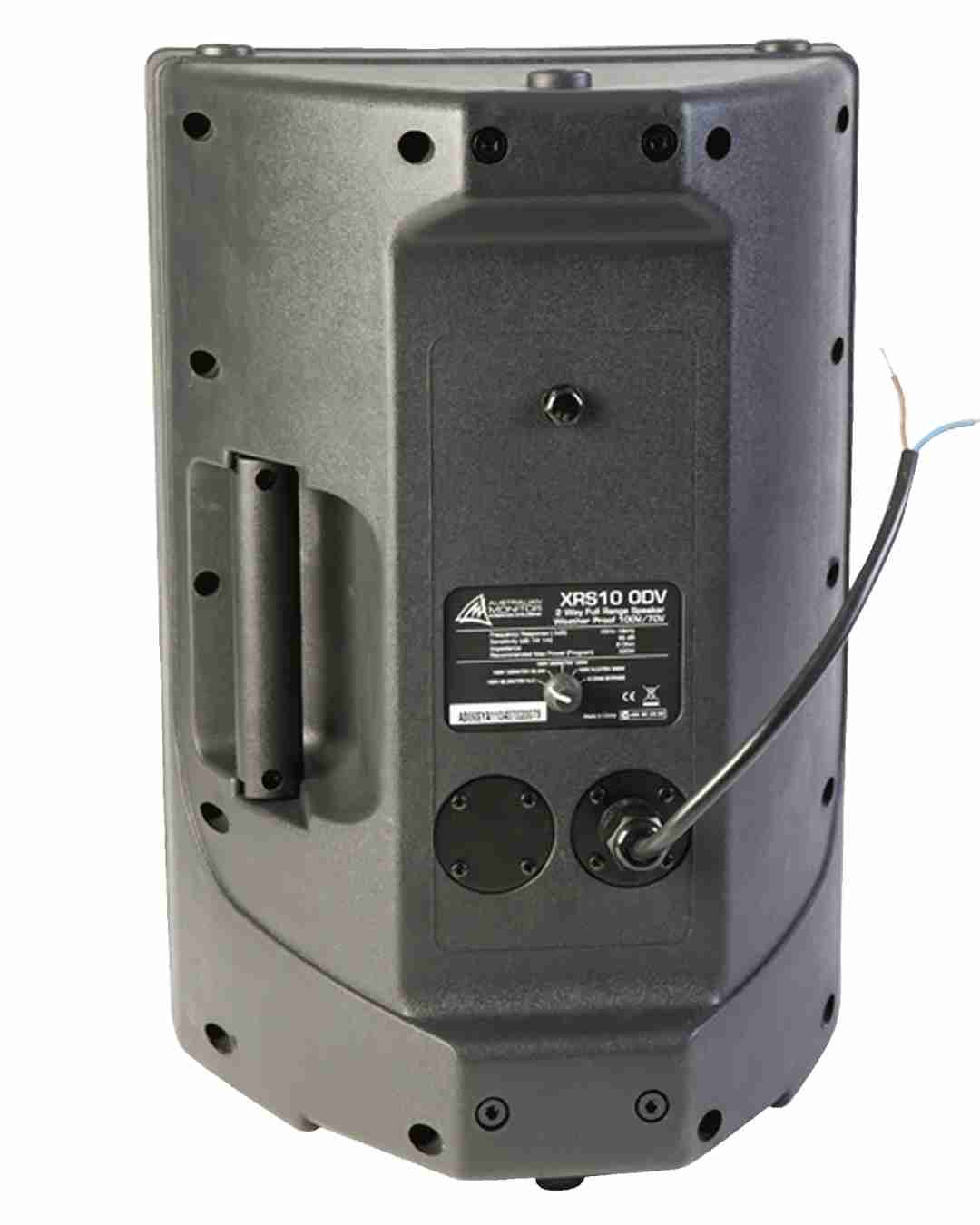

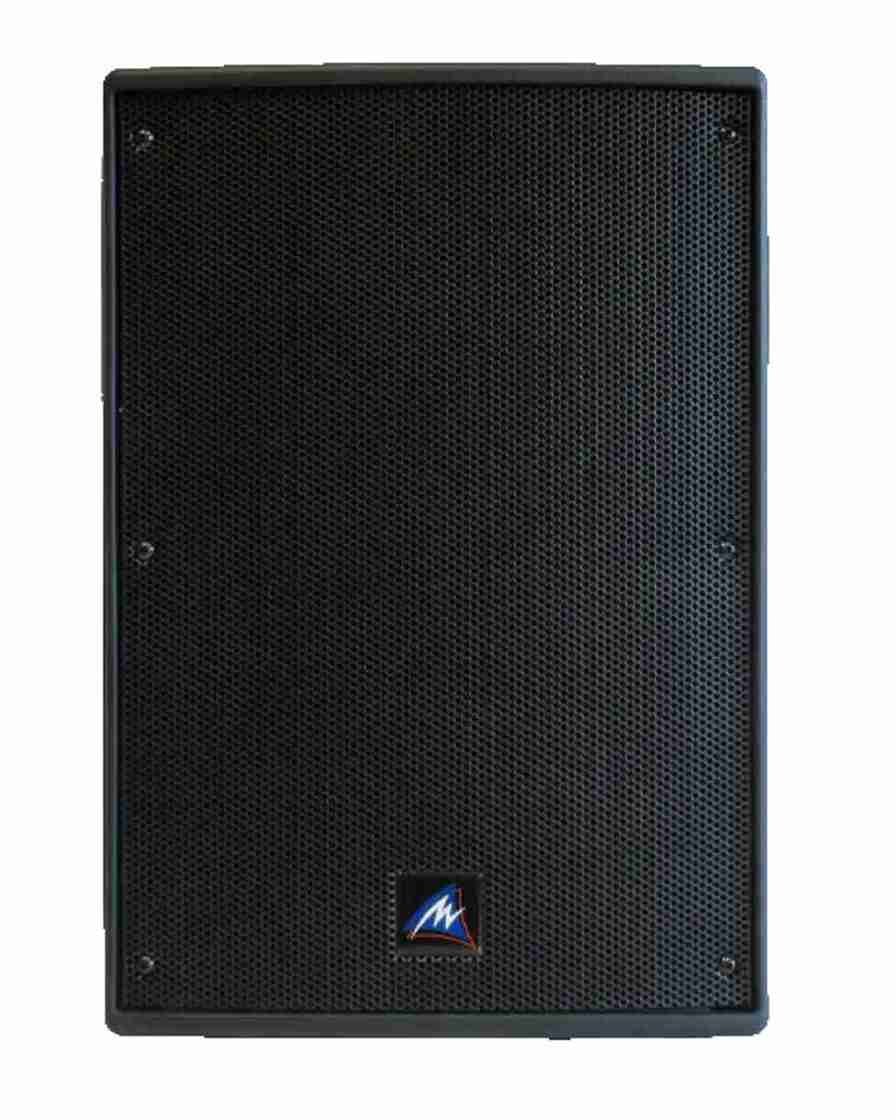

Sonodyne XRS10ODV 10 Inch Outdoor Passive Speaker
The Sonodyne XRS10ODV is a professional-grade 10-inch outdoor passive speaker engineered for powerful sound reinforcement, public address systems, and background music applications in demanding indoor and outdoor environments. Designed with a robust 2-way speaker configuration, it combines a high-performance 10-inch woofer with a 1.5-inch compression driver to deliver clear vocals, detailed high frequencies, and impressive sound coverage.
With 250W continuous power handling, 500W program power, and 1000W peak power capacity, the XRS10ODV is ideal for commercial audio installations requiring high output and reliable performance. The built-in 70V/100V line transformer with selectable power taps offers flexible integration into distributed speaker systems, while the 8-ohm bypass mode provides compatibility with conventional amplifier setups.
Its heavy-duty injection-moulded enclosure and IP44-rated weather-resistant design make it suitable for hotels, resorts, schools, stadiums, shopping malls, gardens, outdoor venues, and public spaces. Multiple mounting options including U-bracket, pole mount, and rigging points provide installation flexibility for a wide range of professional audio applications.
Frequently Asked Questions (FAQs)
The Sonodyne XRS10ODV is designed for outdoor public address systems, commercial audio installations, background music systems, and sound reinforcement applications in large indoor and outdoor spaces.
Yes. The speaker features an IP44-rated weather-resistant enclosure that provides reliable performance in outdoor and semi-exposed environments.
Yes. The built-in transformer supports both 70V and 100V distributed audio systems with selectable power taps.
Yes. The XRS10ODV supports 8-ohm bypass operation, allowing connection to conventional low-impedance amplifiers.
The speaker is ideal for hotels, resorts, schools, stadiums, shopping malls, gardens, outdoor venues, public address systems, and commercial audio installations.
Specifications
| Product Model | Sonodyne XRS10ODV |
| Product Type | 10″ Outdoor Passive Speaker |
| Speaker Configuration | 2-Way Passive Loudspeaker |
| Low Frequency Driver | 10″ Woofer |
| High Frequency Driver | 1.5″ Compression Driver |
| Power Handling (Continuous) | 250W |
| Program Power | 500W |
| Peak Power | 1000W |
| Power Taps (70V/100V Line) | 150W / 75W / 37.5W |
| Impedance | 8 Ohms (Bypass) |
| Frequency Response | 55Hz – 18kHz |
| Sensitivity | 95dB (1W/1m) |
| Maximum SPL | 125dB Peak |
| Coverage Angle | 90° x 90° |
| Transformer | Built-In 70V / 100V Line Transformer |
| Weather Protection | IP44 Rated Outdoor Design |
| Enclosure Material | Heavy-Duty Injection Moulded Cabinet |
| Mounting Options | U-Bracket, Pole Mount & M8 Rigging Points |
| Connection Type | Captive Fly Lead |
| Colour | Black |
| Dimensions (W × D × H) | 321 × 308 × 464 mm |
| Net Weight | 16.5 kg |
| Warranty | 5 Years |
| Applications | Hotels, Resorts, Schools, Stadiums, Shopping Malls, Gardens, Outdoor PA Systems, Commercial Audio & Background Music |
You must be logged in to post a review.
You may also like…

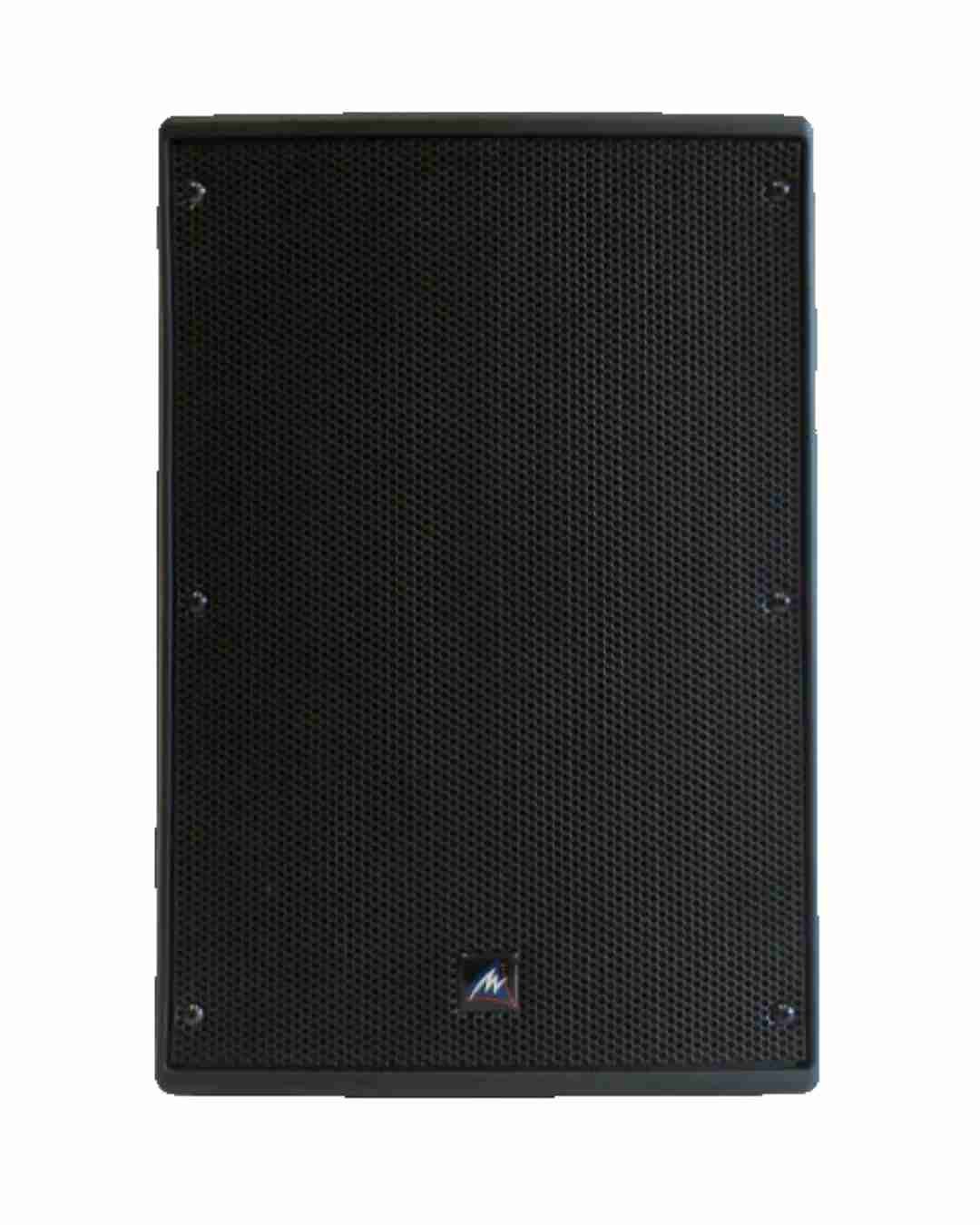

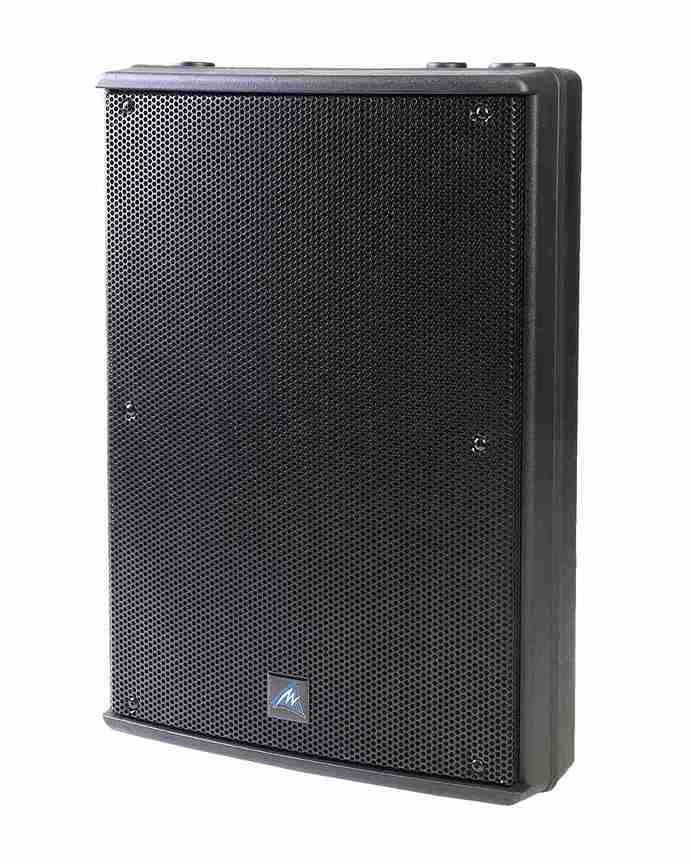

Sonodyne XRS8ODV Passive Speaker
