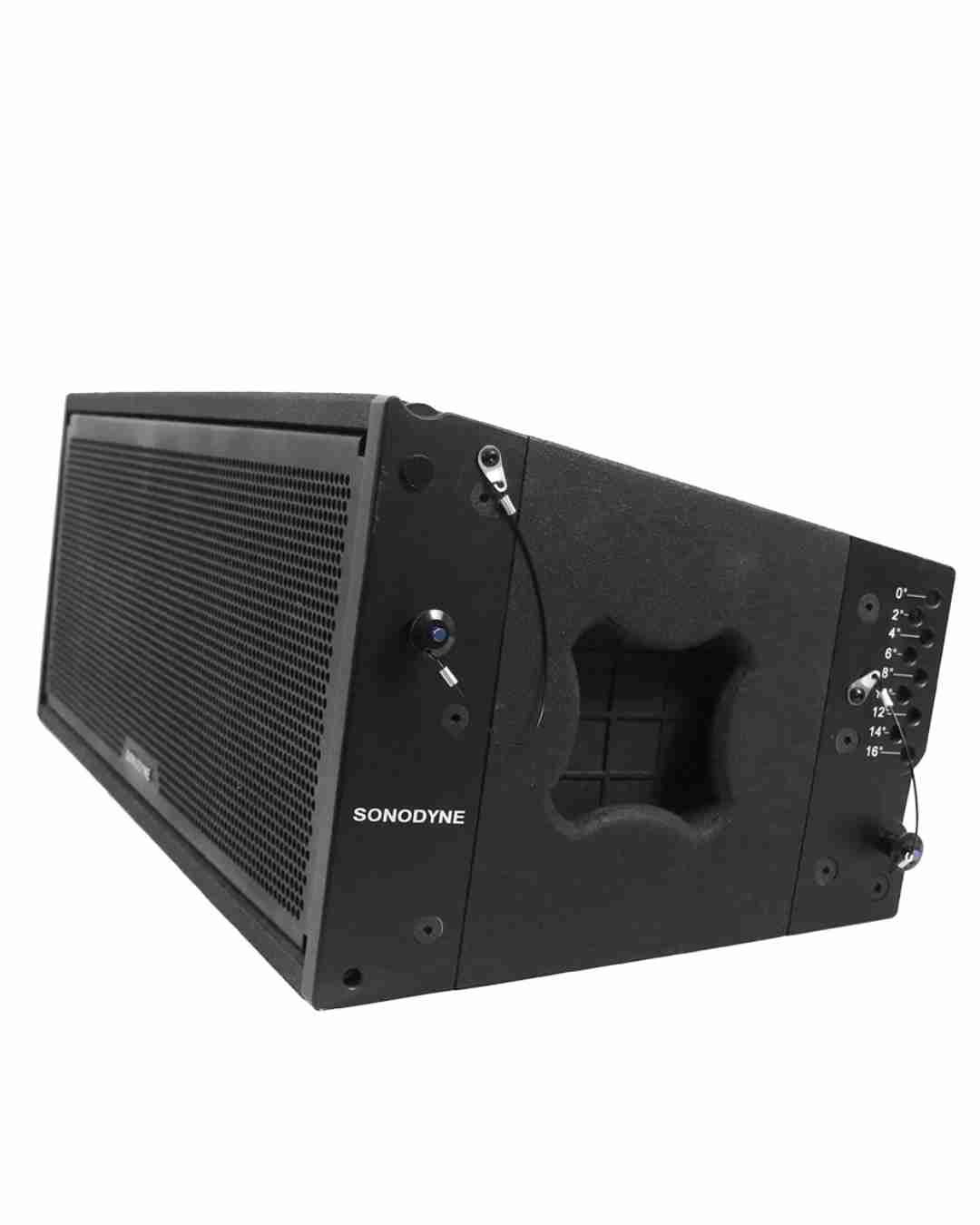

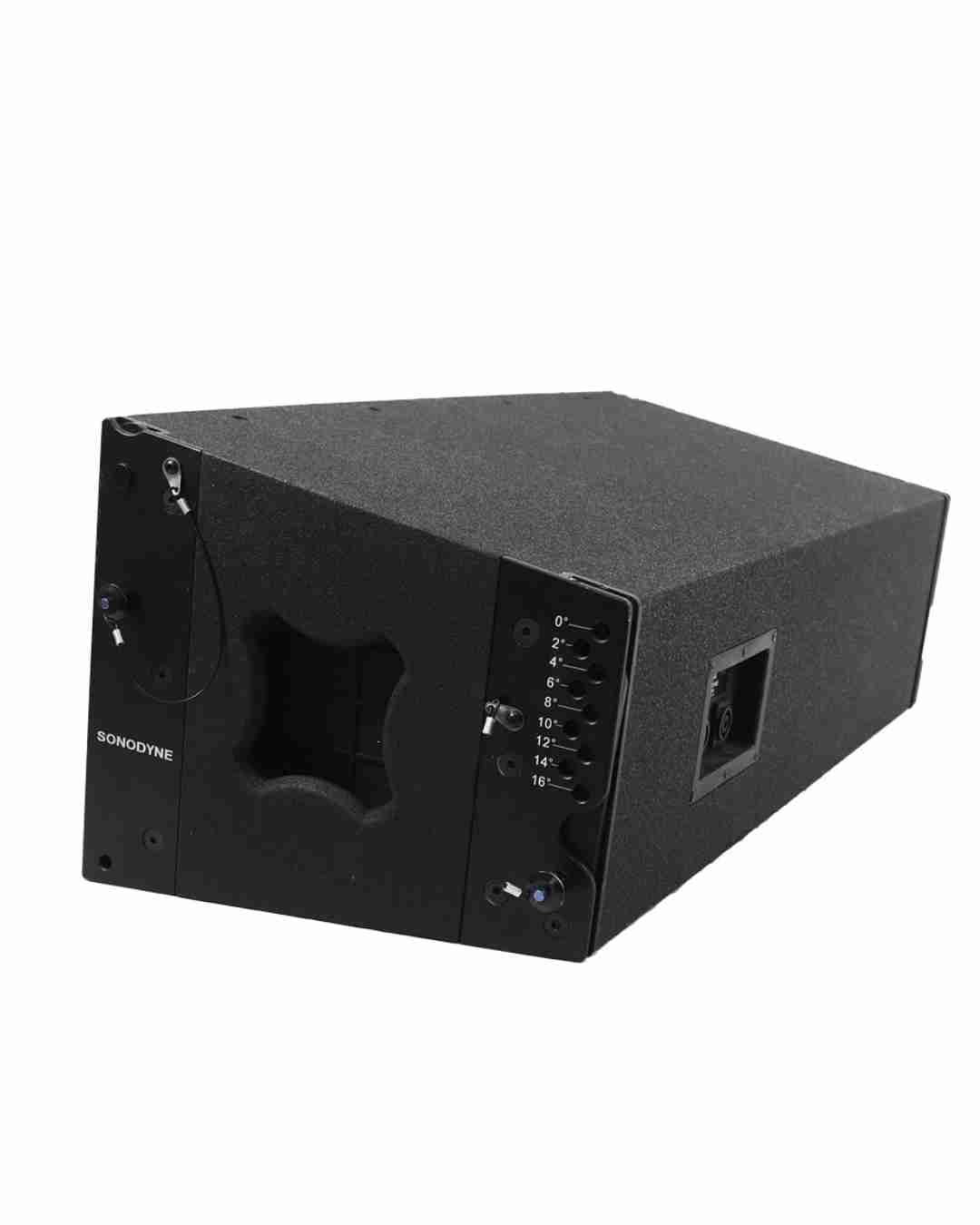

Sonodyne SJX 1212 Line Array Speaker

Rs.174,300.00 Price Excluding TAX

▷ Professional Compact Line Array Loudspeaker
▷ Dual 12 Inch High Efficiency Woofers
▷ 1.4 Inch Compression Driver for Crystal Clear Vocals
▷ Passive 2-Way Professional Line Array Design
▷ 1000W Continuous & 4000W Peak Power Handling
▷ High SPL Output up to 140 dB Peak
▷ Wide 100° Horizontal Sound Coverage
▷ Controlled 15° Vertical Dispersion for Uniform Audio Distribution
▷ Bass Reflex Cabinet for Deep & Powerful Bass Response
▷ High Sensitivity 102 dB for Maximum Efficiency
▷ Rugged 18 mm Plywood Enclosure
▷ Flyable & Ground Stackable Design
Categories: Products, Sonodyne, Speakers Tags: Concert Sound Speaker Dual 12 Inch Line Array Speaker Line Array Speaker System Passive Line Array Speaker
  • Description
  • Reviews 0

Sonodyne SJX 1212 Compact Line Array Loudspeaker – High Power Professional Line Array Speaker

The professional Sonodyne SJX 1212 Compact Line Array Loudspeaker is a high-performance passive 2-way line array speaker designed for concerts, stadium events, auditoriums, churches, clubs, DJ setups, touring systems, and professional live sound reinforcement applications. Engineered for powerful long-throw audio performance, the SJX 1212 delivers deep bass, crystal-clear vocals, and wide sound coverage for large venues and outdoor events.

Featuring dual 12-inch high-efficiency woofers and a premium 1.4-inch compression driver, the Sonodyne SJX 1212 produces punchy low frequencies, detailed midrange response, and smooth high-frequency clarity. Its advanced line array configuration and precision waveguide technology provide even sound distribution with excellent vocal intelligibility across large audience areas.

The rugged 18 mm plywood enclosure with durable paint finish ensures reliable performance for touring and permanent installation applications. The trapezoidal cabinet design, flyable mounting system, and ground stack capability make the SJX 1212 an ideal solution for professional line array installations and portable event sound systems.

With 1000W continuous power handling, 2000W program power, and maximum SPL up to 140 dB peak, this compact line array speaker delivers extremely powerful and reliable sound reinforcement for concerts, live performances, worship places, and high-demand event applications.

Its 100° × 15° coverage pattern ensures wide horizontal sound dispersion with controlled vertical coverage for consistent audience listening experience. Professional twist-lock input and link connectivity provide secure integration and easy setup for professional audio environments.

Whether used for touring applications, live concerts, auditoriums, churches, clubs, or professional DJ sound systems, the Sonodyne SJX 1212 offers exceptional audio clarity, rugged construction, and trusted professional line array performance across India.



Frequently Asked Questions (FAQs)

1Where can the Sonodyne SJX 1212 Line Array Speaker be used?

This speaker is ideal for concerts, auditoriums, churches, clubs, DJ events, touring applications, and professional live sound reinforcement systems.

2Is the SJX 1212 suitable for large event sound systems?

Yes, its high SPL output, dual 12-inch woofer design, and professional line array configuration make it perfect for large venue and outdoor sound reinforcement.

3Does the SJX 1212 require an external amplifier?

Yes, this is a passive line array speaker and requires a compatible professional power amplifier for operation.

4What installation options are available for the SJX 1212?

The speaker supports both flyable installation and ground stack setup with professional flying hardware and vertical tilting arrangement.

5What makes the Sonodyne SJX 1212 different from regular PA speakers?

Its compact line array design, dual 12-inch woofer configuration, premium compression driver, controlled sound dispersion, and ultra-high SPL performance provide superior live sound coverage and professional audio clarity.



Specification

Product Name Sonodyne SJX 1212
Speaker Type Compact Line Array Loudspeaker
Description Passive 2-Way Compact Line Array Speaker
Configuration Passive 2-Way, Dual 12″ Vented Design

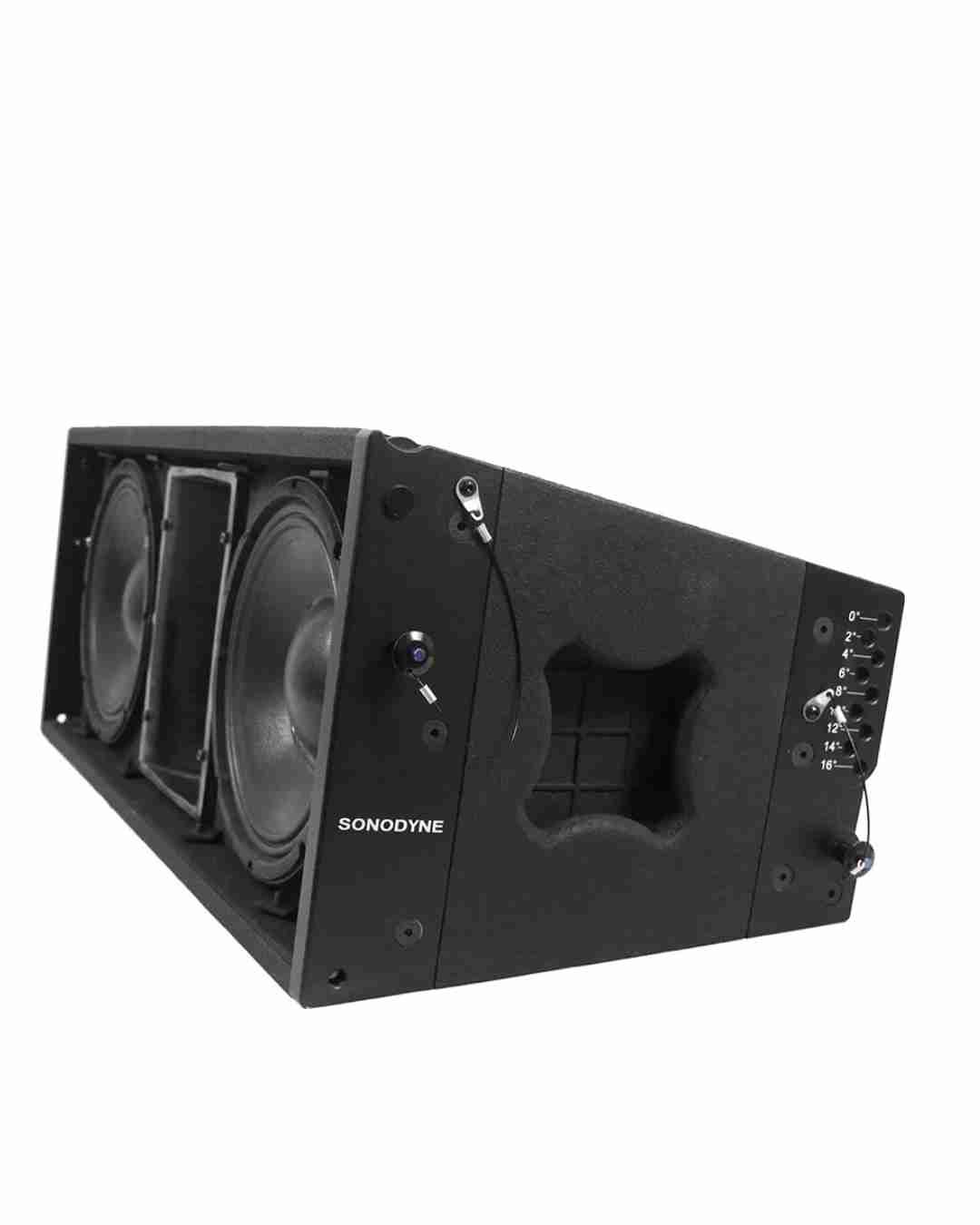

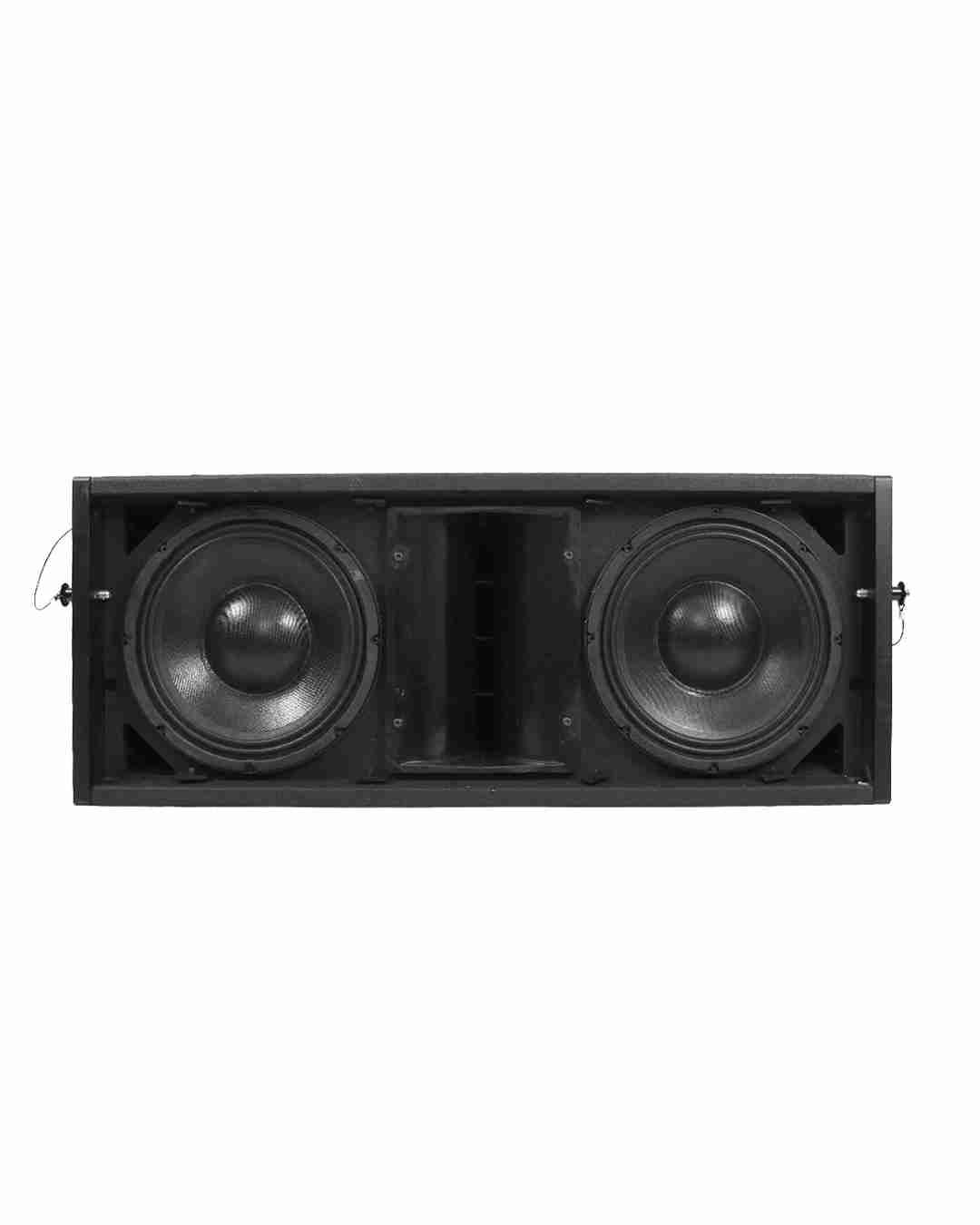

LF Driver 2 × 12 Inch Woofers
LF Voice Coil 3 Inch Voice Coil
HF Driver 1 × 1.4 Inch Compression Driver
HF Voice Coil 2.5 Inch Voice Coil
Frequency Range 50Hz – 20kHz (-10dB)
Nominal Impedance 8 Ohm
Crossover Frequency 1.4kHz
HF Directivity 100° × 15°
Sensitivity 102 dB (1W/1M)
Maximum SPL 134 dB Continuous / 140 dB Peak
Power Handling 1000W Continuous / 2000W Program / 4000W Peak
Cabinet Design Bass Reflex Vented Cabinet
Enclosure Shape Trapezoidal
Enclosure Material Durable 18 mm Plywood

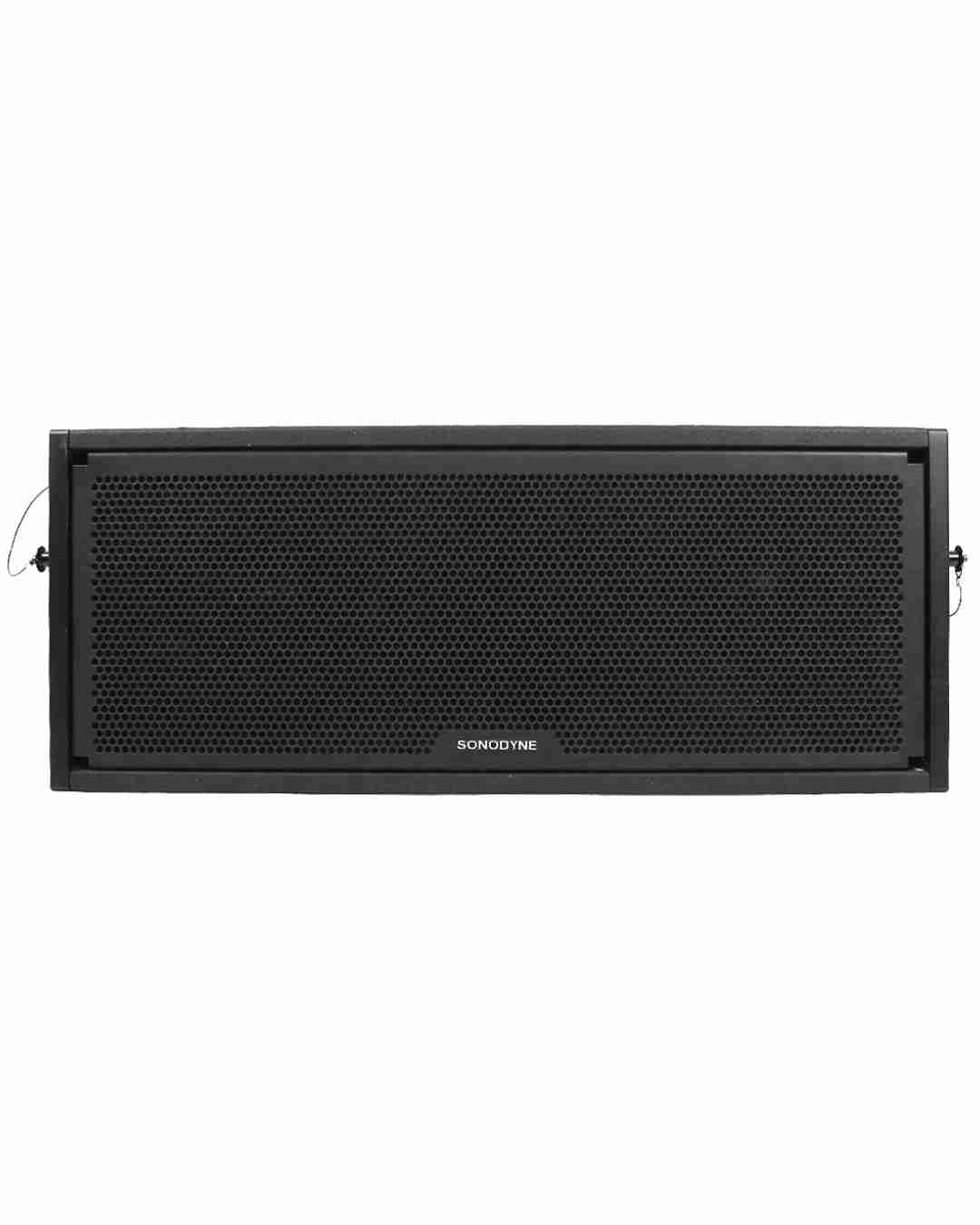

Grille Powder Coated 18 Gauge Perforated Steel

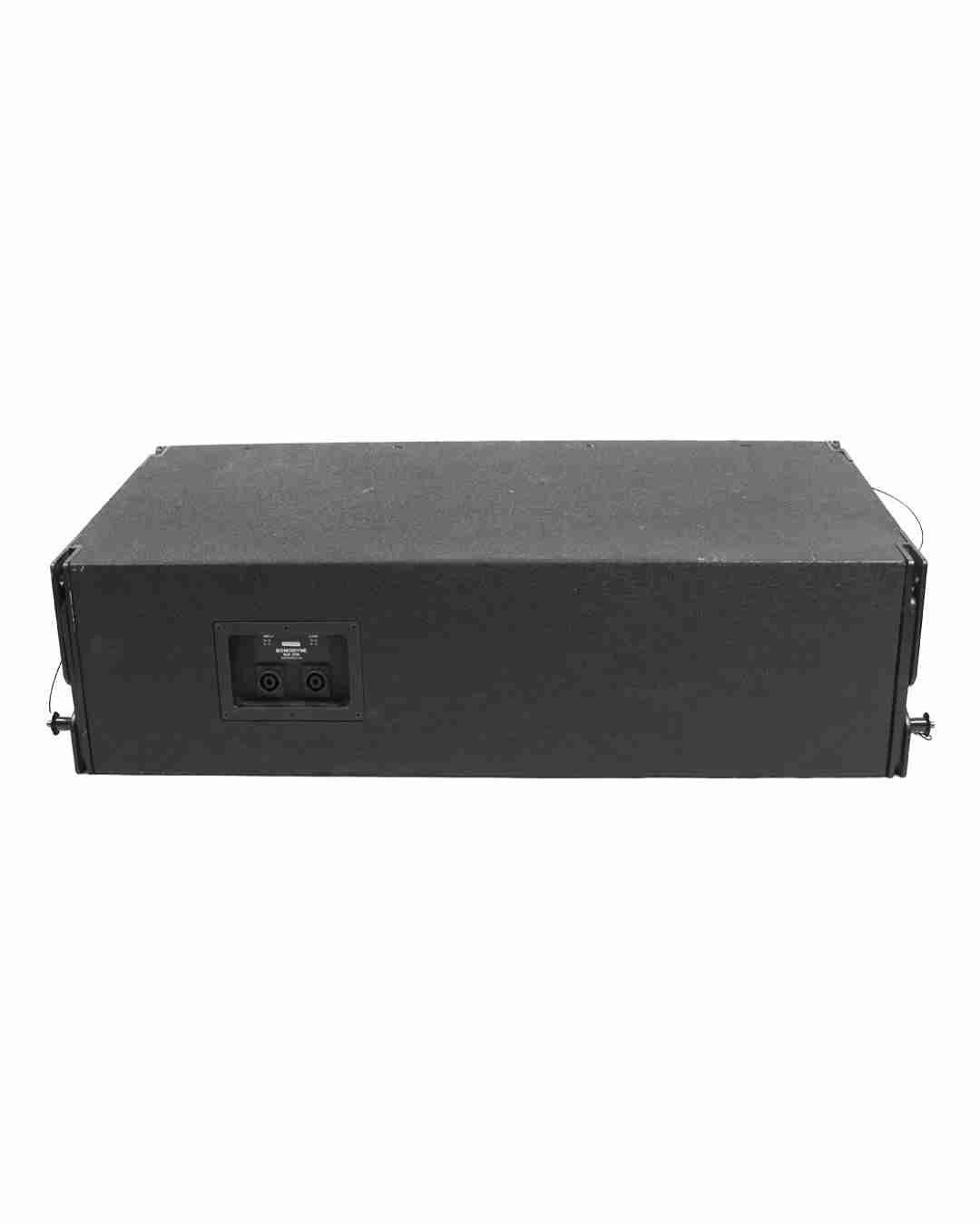

Connectivity 1 × Twist-Lock Input & 1 × Twist-Lock Link

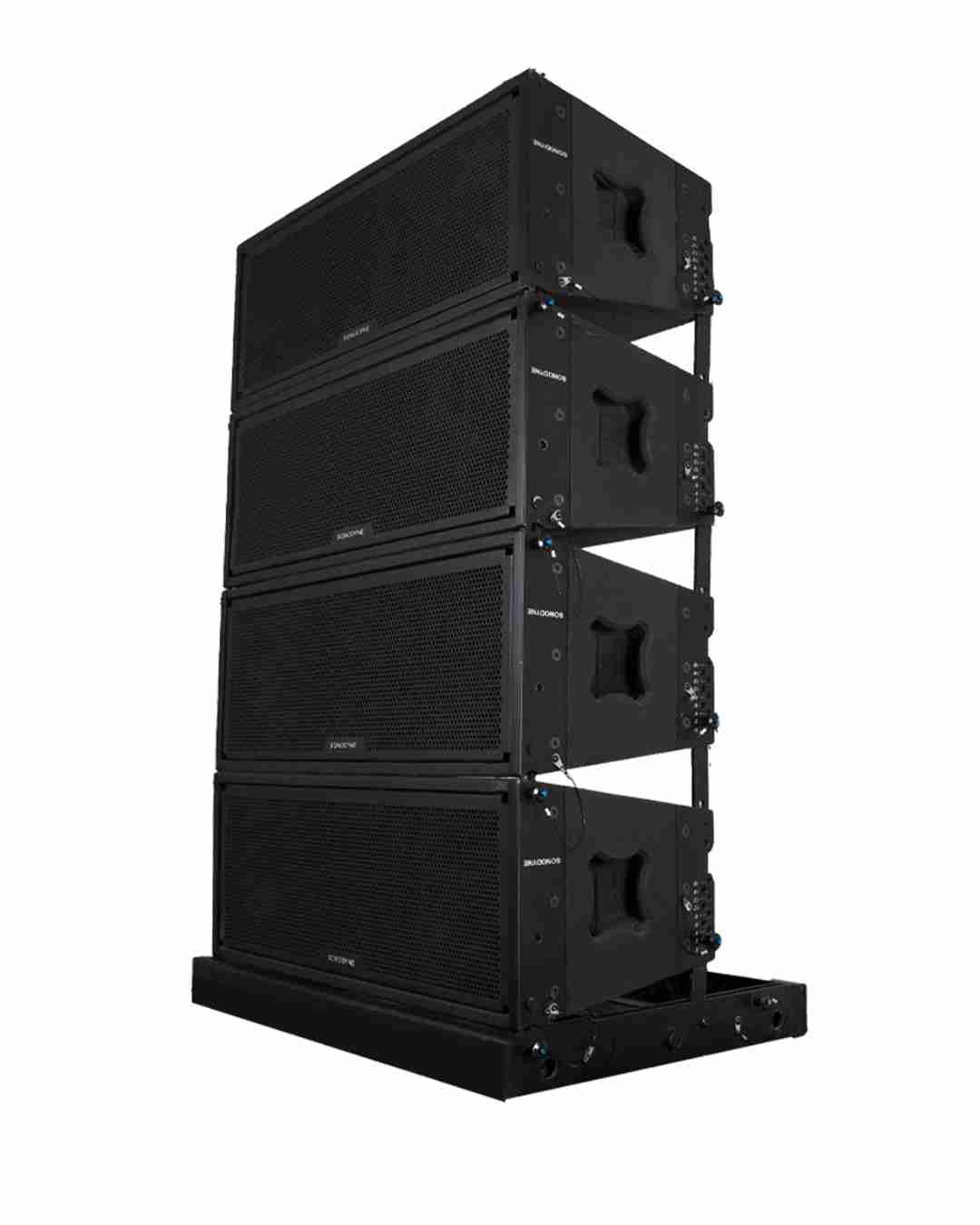

Mounting Options Flyable & Ground Stackable

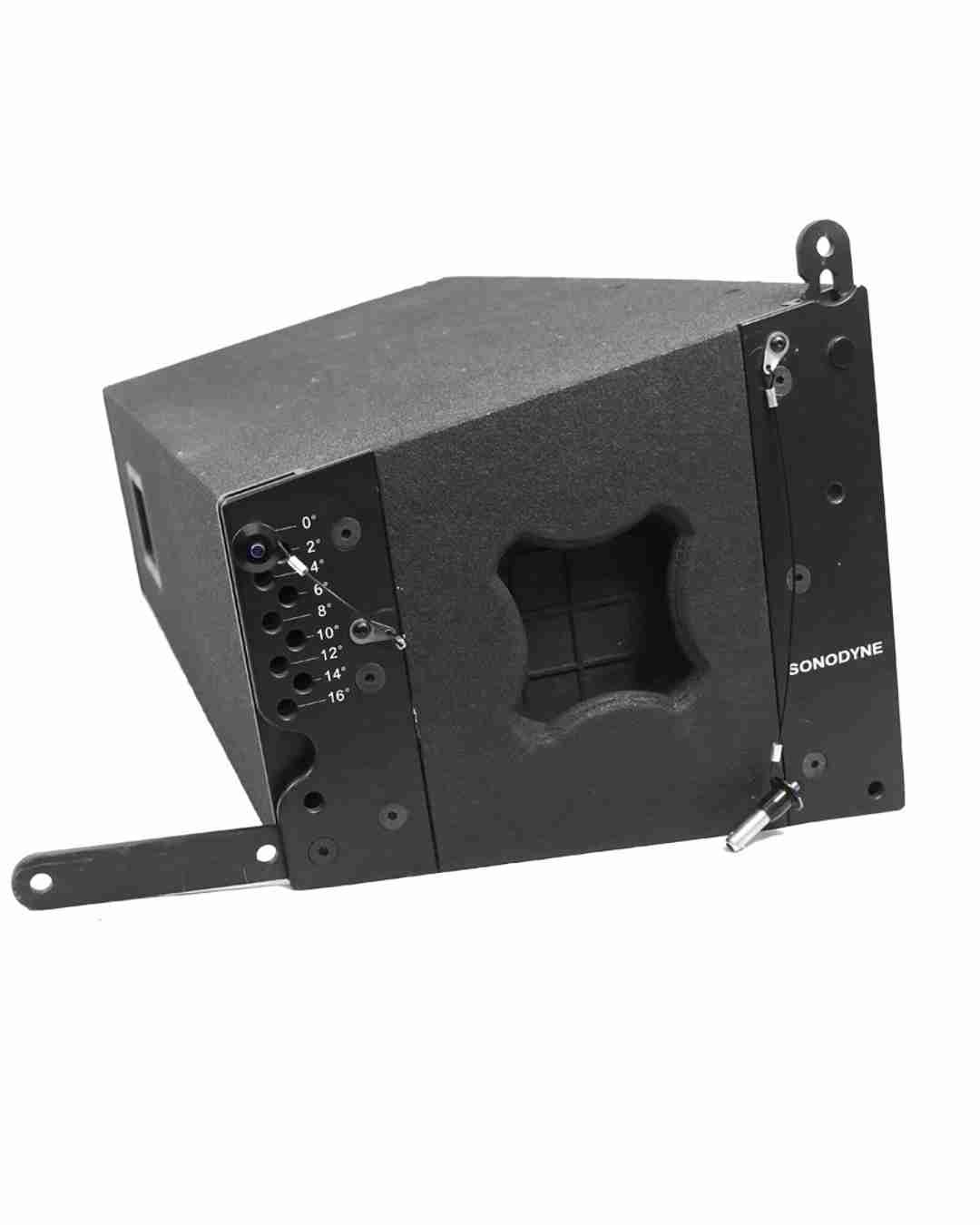

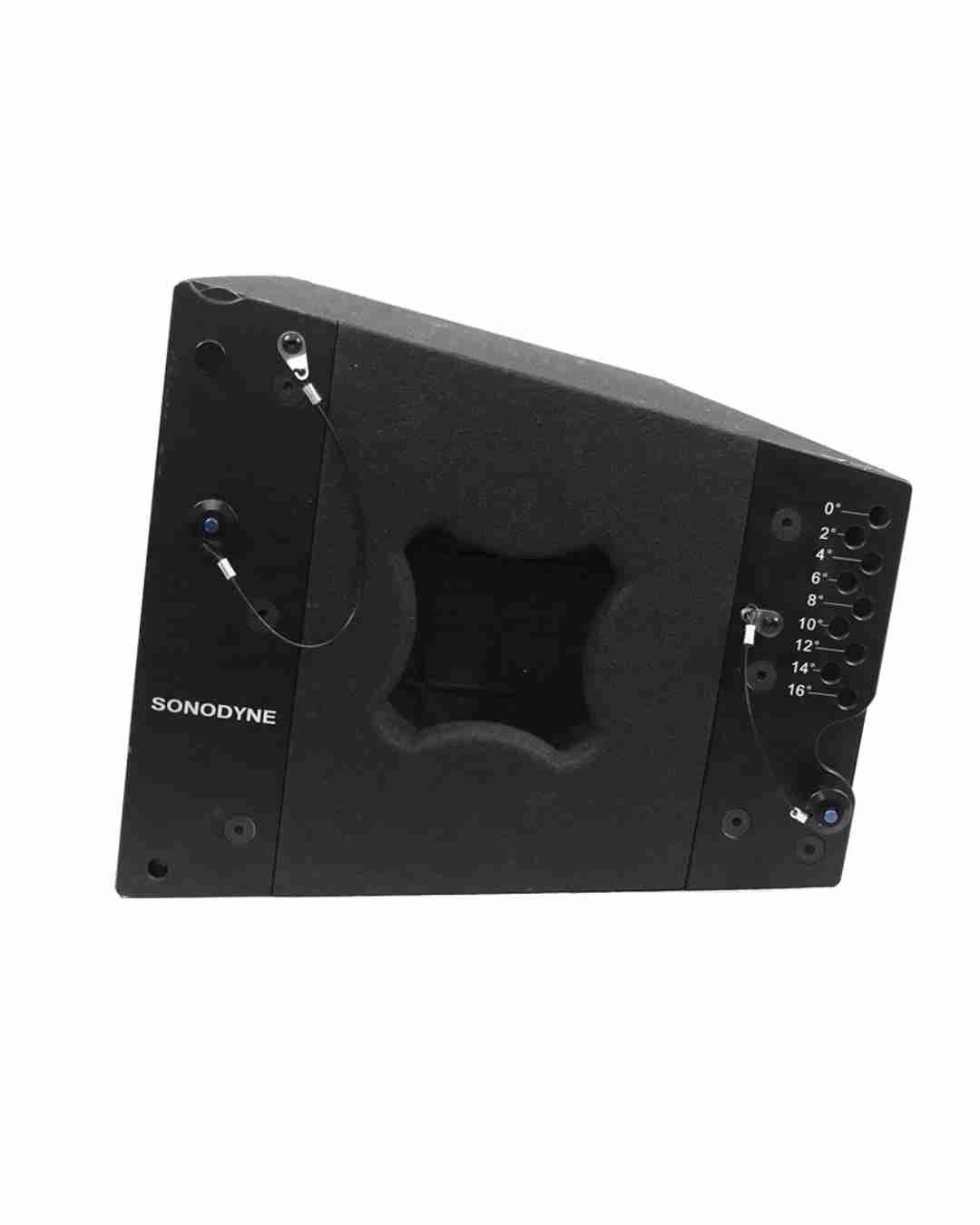

Flying Hardware Standard Bracket with Vertical Tilting Arrangement
Finish Durable Paint Finish
Dimensions 370 × 975 × 540 mm
Net Weight Approx. 30 Kg
Application Professional Line Array & Sound Reinforcement
Ideal For Concerts, Auditoriums, Churches, Clubs, Live Events
Usage Touring, Fixed Installation & Live Sound Applications
