Studiomaster DIGITREK 18 Digital Mixer
▷ Professional 16-Channel Digital Mixer for live sound, concerts, events and PA systems.
▷ 12 XLR Mic Inputs + 4 Combo Inputs for flexible microphone and audio source connectivity.
▷ 16 Internal Buses for advanced signal routing and professional sound management.
▷ 6 DCA Groups & 2 Mute Groups for quick and efficient control of multiple channels.
▷ 9 Motorized Faders for precise and smooth mixing control.
▷ 7-Inch HD Touchscreen for easy navigation and convenient mixer operation.
▷ 8 Assignable Built-In Effects including Reverb, Delay and Modulation.

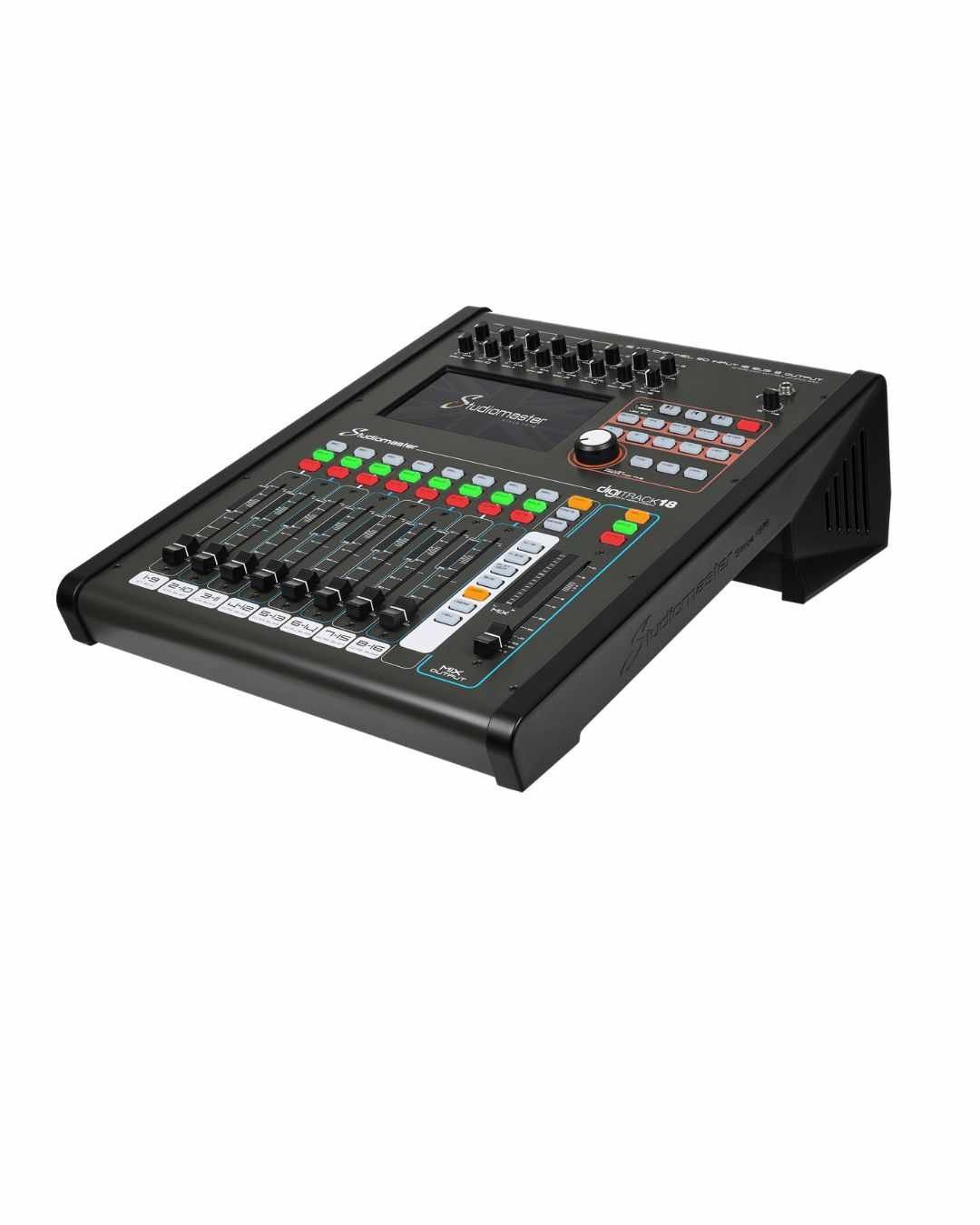

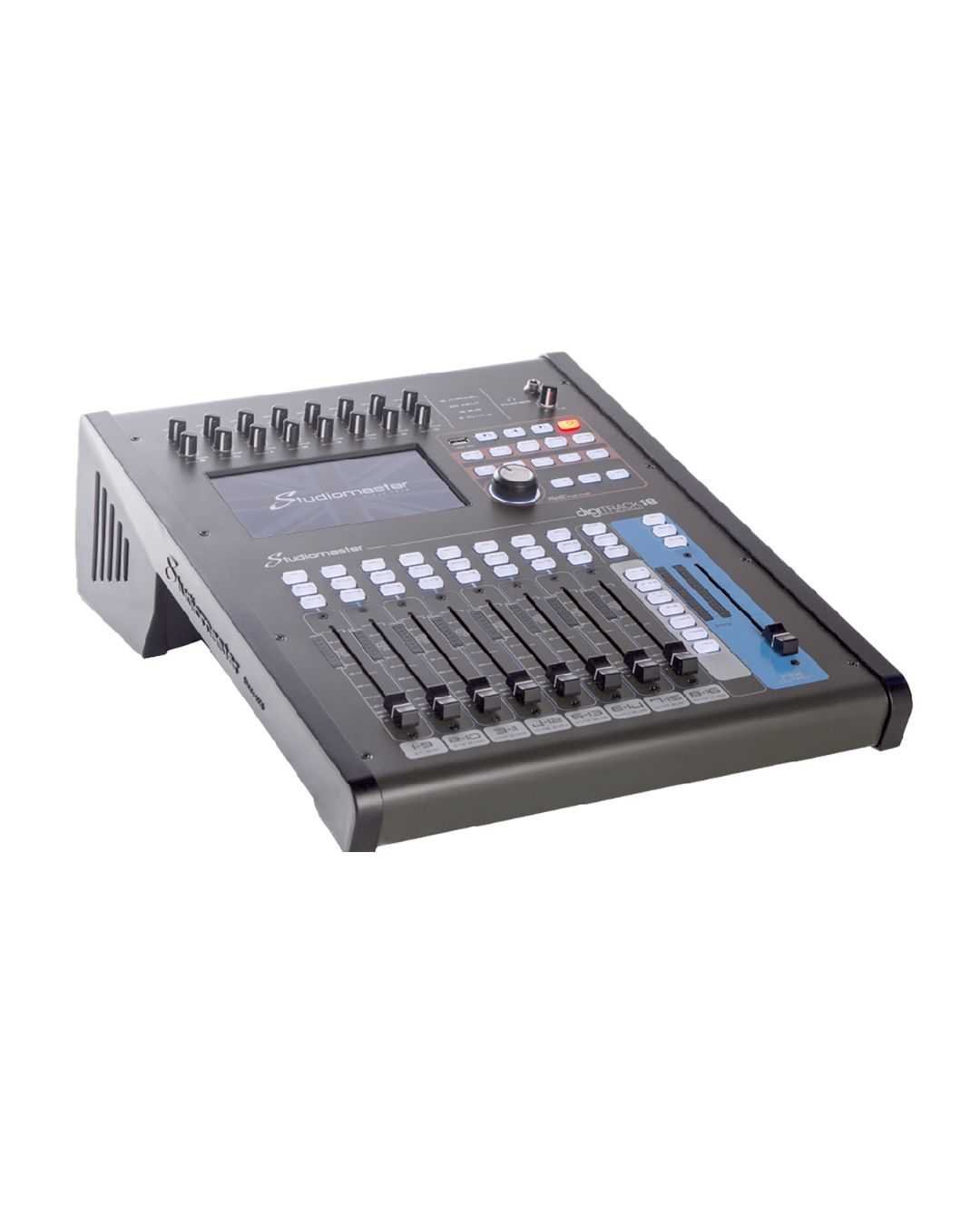

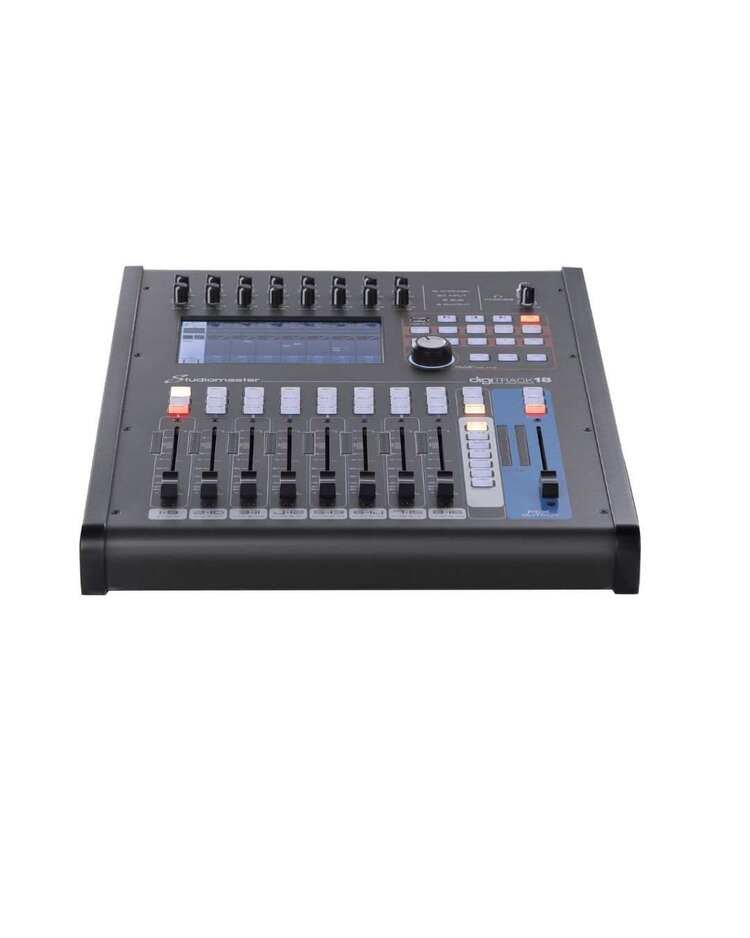

Studiomaster DIGITRACK 18 Digital Mixer – Professional 16 Channel Digital Audio Mixer in India
The Studiomaster DIGITRACK 18 Digital Mixer is a professional 16-channel digital audio mixer designed for live sound, concerts, stage shows, auditoriums, conference halls, worship spaces, schools, colleges, hotels, event companies, rental businesses, and professional PA systems in India. With 16 MIC/LINE inputs, 16 internal buses, 6 DCA groups, 2 mute groups, motorized faders, a 7-inch HD touchscreen, built-in effects, USB connectivity, LAN audio and remote-control capabilities, it provides flexible and precise control for professional sound applications.
The DIGITRACK 18 features 12 XLR microphone inputs and 4 combo XLR/Jack inputs, allowing users to connect microphones, instruments and other audio equipment. Its 16 internal buses provide flexible signal routing, while 6 DCA groups and 2 mute groups make managing multiple channels easier during live performances, concerts and events.
Specification
| Brand | Studiomaster |
| Model | DIGITRACK 18 |
| Product Type | Professional Digital Mixing Console |
| MIC/LINE Inputs | 16 Channels |
| Microphone Inputs | 12 × XLR |
| Combo Inputs | 4 × Combo XLR/Jack |
| Internal Buses | 16 |
| DCA Groups | 6 |
| Mute Groups | 2 |

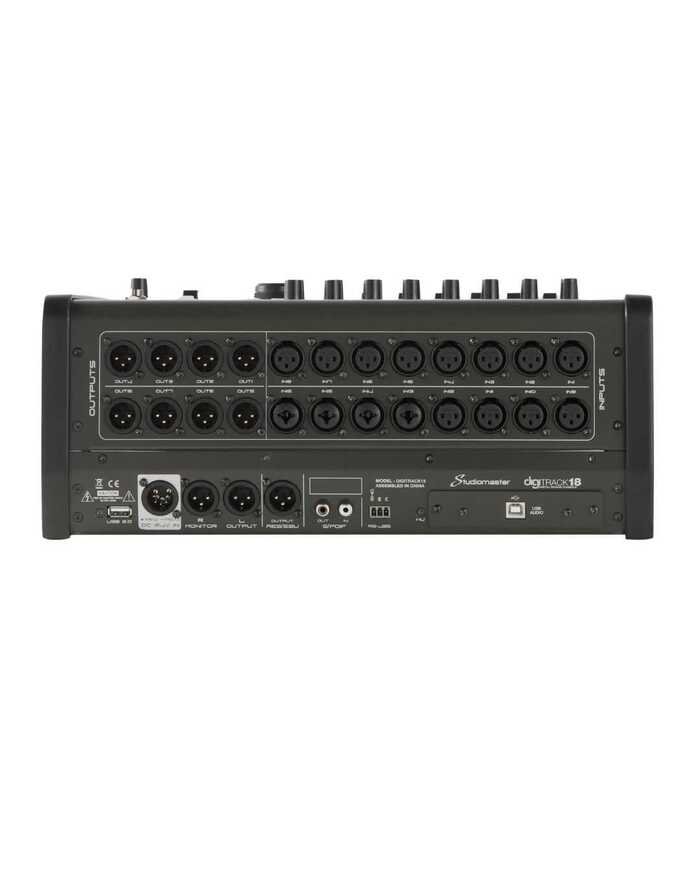

| Master Outputs | 2 × Balanced XLR (L/R) |
| Smart Outputs | 6 × Assignable Balanced XLR |
| Stereo Monitor Outputs | 2 × XLR |
| Headphone Output | 1 × TRS Jack |
| Touchscreen | 7-inch HD Touchscreen |
| Screen Resolution | 1024 × 600 |
| Motorized Faders | 8 × 100 mm + 1 × 100 mm L/R Master Fader |
| Layers | Multiple Channel/Bus Layers + 2 Custom User Layers |
| Sample Frequency | 48 kHz |
| AD/DA Conversion | 192 kHz, 24-bit |
| DSP | 40-bit Floating-Point SHARC Processor |
| Effects | Up to 8 Assignable Effect Modules |
| Effect Types | Reverb, Modulation, Delay & 31-Band GEQ with RTA |
| EQ | 4-Band Fully Parametric EQ |
| Dynamics | Adjustable Gate & Compressor |
| AES/EBU | Digital Output via XLR |
| S/PDIF | Input/Output via RCA |
| USB Type-A | 2 × USB for Playback, Recording, Scene Storage & System Updates |
| Optional USB Type-B | 16 × 16 USB Audio Interface for PC/DAW |
| LAN Connectivity | 2 × RJ45 Digital Audio In/Out |
| Remote Control | Cross-Platform via Wi-Fi/LAN & Web Browser |
| Wi-Fi | Supported via External Wi-Fi Module |
| RS485 | Supported |
| Power Supply | 90–240V AC, 50/60Hz with 24V DC Output |
| Dimensions (W × H × D) | 585 × 465 × 230 mm |
| Net Weight | 7.5 kg |
