CMX EA-30T -2 Zone Mixer Amplifier
30W RMS Powerful Output for clear announcements and background music
2 Independent Speaker Zones with separate volume control
Built-in Bluetooth Connectivity for wireless mobile audio streaming
USB / SD Card / FM Radio Support with inbuilt MP3 player
Supports 100V / 70V Line Speakers for PA and commercial audio systems
Compatible with 4Ω / 8Ω / 16Ω Speakers
3 Microphone Inputs for announcements, meetings, and speeches
Balanced XLR Mic Input with Phantom Power & VOX Priority
2 RCA Line Inputs + RCA Line Out
Bass / Treble / Master Volume Controls for customized sound
Telephone Input with MOH & Secondary Priority
LED Indicators: Power / Signal / Clip / Protect
Built-in Protection against overload, short circuit, and overheating
AC 230V + 24V DC Backup Support

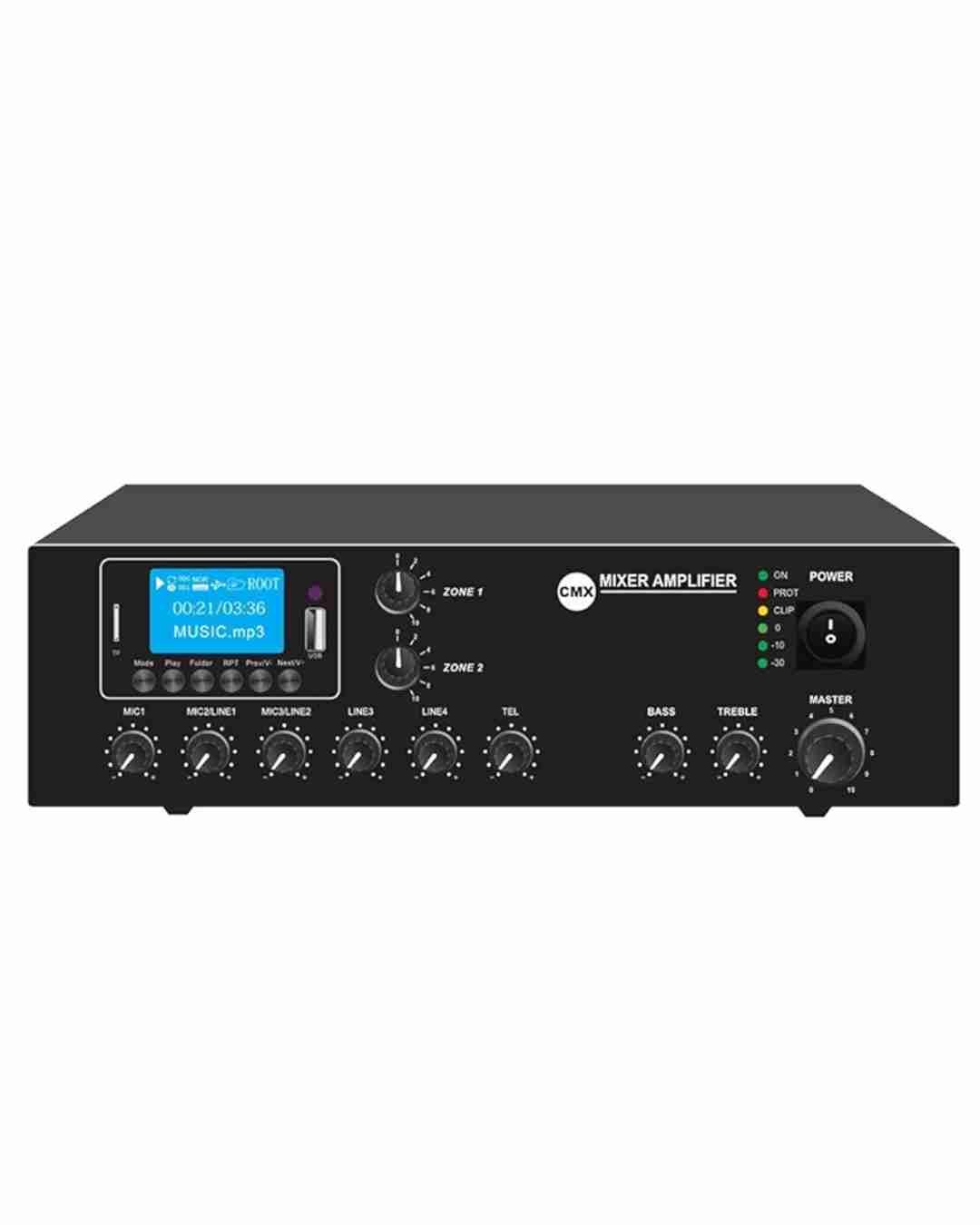

CMX 2 Zone Mixer Amplifier with Bluetooth EA-30T | 30W Dual Zone PA Amplifier with USB / SD / FM
The CMX 2 Zone Mixer Amplifier with Bluetooth EA-30T is a compact and reliable 30W dual zone PA amplifier designed for clear announcements, background music, and commercial public address systems. With support for Bluetooth, USB, SD card, and FM radio, this amplifier offers multiple playback options for easy day-to-day use. Its 2 independent speaker zones allow you to control audio in two different areas separately, making it ideal for schools, offices, shops, temples, clinics, restaurants, and small commercial spaces across India. The EA-30T supports 100V / 70V line speakers as well as 4Ω, 8Ω, and 16Ω speaker outputs, making it perfect for both PA announcement systems and regular speaker setups. With 3 microphone inputs, VOX priority, tone controls, and overload protection, it delivers smooth, clear, and dependable sound performance. Whether you need a 2 zone amplifier for school announcements, shop music system, or office PA solution, the CMX EA-30T is a powerful and cost-effective choice.
Frequently Asked Questions
- What is a 2 zone amplifier?
A-1 A 2 zone amplifier lets you control audio separately in two different speaker areas, each with its own volume.
- Does it support Bluetooth music streaming?
A-2 Yes, it comes with built-in Bluetooth for wireless audio playback.
- Can I connect 100V line speakers?
A-3 Yes, it fully supports 100V / 70V line PA speakers.
- Is it suitable for schools and offices?
A-4 Yes, it is ideal for school announcements, office paging, and shop background music.
- Does it support power backup?
A-5 Yes, it supports 24V DC input, suitable for inverter or battery backup systems.
Specifications
| Product Name | CMX 2 Zone Mixer Amplifier with Bluetooth EA-30T |
| Brand | CMX Audio |
| Model Number | EA-30T |
| Amplifier Type | Compact Tabletop 2 Zone PA Mixer Amplifier |
| Rated Power Output | 30W RMS |
| Zones | 2 Independent Speaker Zones |
| Zone Control | Separate Volume Attenuator for Each Zone |
| Audio Sources | USB / SD Card / FM Radio / Bluetooth |
| Speaker Output | 100V / 70V / 4Ω / 8Ω / 16Ω |
| Zone Speaker Output | Dual 100V Zone Output |
| Microphone Inputs | 3 Mic Inputs |
| Mic 1 Input | Balanced XLR with Phantom Power & VOX Priority |
| Mic 2–3 Input | 6.3mm Mic / Line Switchable Jack |
| Line Inputs | 2 RCA Inputs |
| Line Output | RCA Line Out (0.775V) |
| Telephone Input | Yes, with Secondary Priority & MOH |
| Frequency Response | 60Hz – 15kHz (±3dB) |
| Signal to Noise Ratio | Line ≥ 85dB, Mic ≥ 72dB |
| THD | Less than 0.5% |
| Tone Control | Bass / Treble / Master Volume |
| Indicators | Power / Signal / Clip / Protect LED |
| Protection | Short Circuit / Overload / Clip / High Temp |
| Power Consumption | 60W |
| Power Supply | 230V AC & 24V DC |
| Dimensions | 320 × 210 × 90 mm |
| Weight | 3.7 kg |
